View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Doors
05 - Cabinet
07 - Shelves
09 - System
10 - Wiring Schematic
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

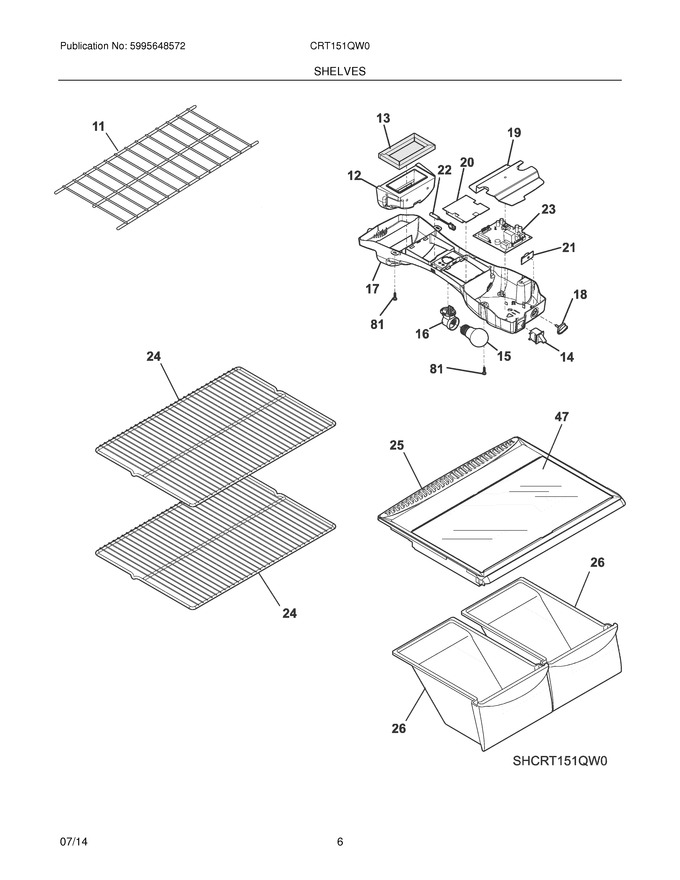

| 11 | 240358007 | Shelf,freezer |
|
Immediately | $ 87.17 | ||||
| 12 | 242228801 | Diffuser,air ,control Box |
|
$ 34.89 | |||||
| 13 | 242240601 | Gasket,air Diffuser |
|
$ 20.84 | |||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket,light (Replaces: 242081801) |
|
$ 72.68 | |||||
| 17 | 242216701 | Control Box |
|
$ 232.82 | |||||
| 18 | 242217001 | Knob,cold Control |
|
$ 226.00 | |||||
| 19 | 242216901 | Cover,control Housing |
|
$ 0.71 | |||||
| 20 | 242228701 | Shield,heat |
|
$ 17.25 | |||||
| 21 | 5304501856 | Board,user Interface ,potentiometer (Replaces: 242231601) |
|
Immediately | $ 766.96 | ||||
| 22 | 240597220 | Sensor,temperature ,10k ,ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 5303918675 | Board,main Control ,erf1500 (Replaces: 242216804) |
|
Immediately | $ 765.99 | ||||
| 24 | 240360906 | Shelf, Sliding, Wire |
|
Immediately | $ 99.35 | ||||
| 25 | 5304497387 | Cover,crisper Pans |
|
$ 150.92 | |||||
| 26 | 240364503 | Pan,crisper ,(2) |
|
Immediately | $ 146.53 | ||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 47 | 242087903 | Glass-shelf,crisper Cover |
|
Immediately | $ 116.19 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| NI | 241705801 | Spacer-shelf |
|
$ 7.09 | |||||
| NI | 5303299664 | Spacer,shelf |
|
$ 24.10 | |||||
| NI | 242213801 | Harness Assembly,wiring ,control Box |
|
$ 79.62 |
