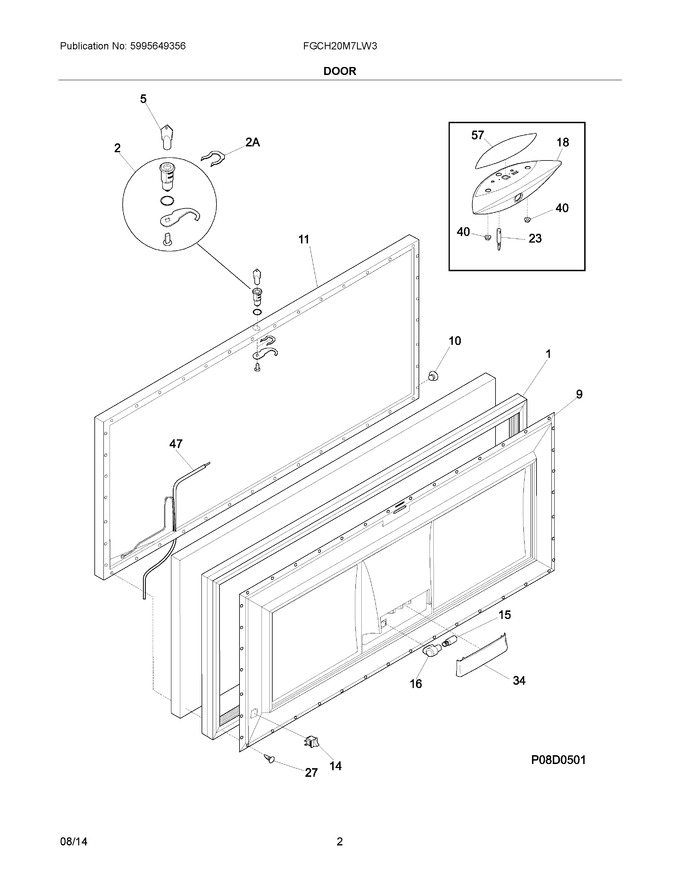

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481411 | Gasket, Lid Seal, White |
|
$ 239.40 | |||||
| 2 | 297090100 | Lock Assy |
|
$ 21.27 | |||||
| 5 | 297147700 | Key, Lock |
|
Immediately | $ 7.57 | ||||
| 9 | 216829504 | Panel-inner Door, Frzr |
|
$ 172.66 | |||||
| 10 | 216923001 | Plug Button, 1/4", White |
|
$ 9.87 | |||||
| 11 | 216130127 | Lid, White |
|
$ 273.32 | |||||
| 14 | 216822900 | Switch, Light/lamp, Ramp |
|
Immediately | $ 70.16 | ||||
| 15 | 241552802 | Light Bulb/lamp, Short (Replaces: 297048600) |
|
Immediately | $ 50.45 | ||||
| 16 | 297139501 | Socket, Light/lamp, 25 W |
|
$ 19.52 | |||||
| 18 | 216897600 | Handle, White |
|
$ 60.58 | |||||
| 23 | 216212711 | Light-signal, Amber |
|
$ 21.58 | |||||
| 27 | 5303212828 | Clip, Panel Mtg |
|
$ 16.63 | |||||
| 34 | 297013900 | Shield, Light |
|
$ 35.73 | |||||
| 40 | 216922700 | Fastener, .330 Dia Stud, Handle, (2) |
|
$ 12.05 | |||||
| 47 | 216908000 | Harness-lid |
|
$ 148.89 | |||||
| 57 | 216899520 | Overlay, Gallery |
|
$ 24.41 | |||||
| 2A | 297090900 | Clip, Spring |
|
$ 10.85 | |||||
| NI | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| NI | 5303925098 | Insulation |
|
$ 120.65 | |||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 125.83 |
