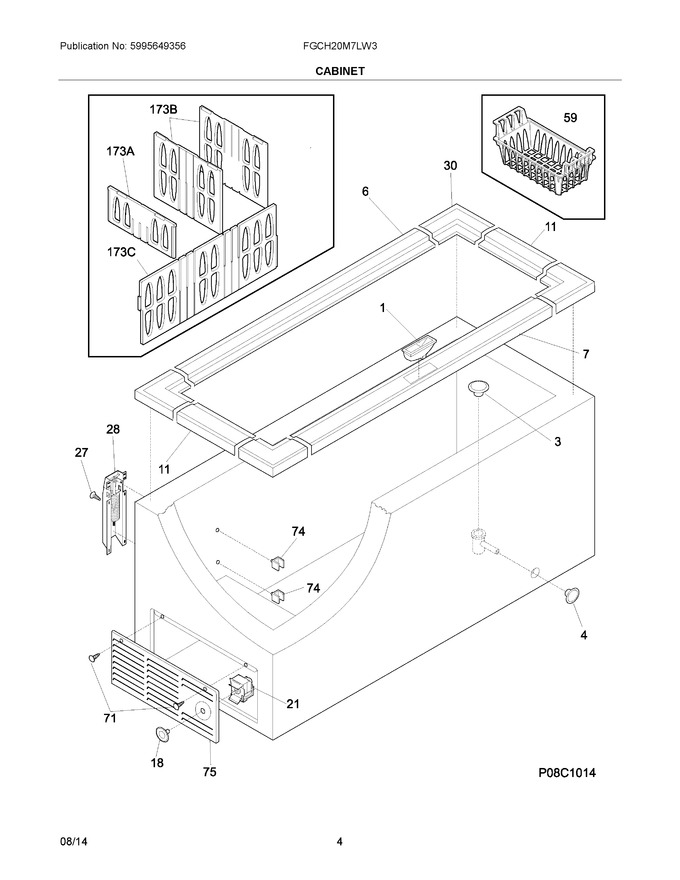

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	216955513		Breaker, Hinge Side				$ 19.48
7	297129400		Breaker, Lock Side, W/lock Catch				$ 33.29
11	216955500		Breaker, Chest End, (2)				$ 15.75
18	216707200		Knob, Temp Control				$ 44.10
21	297216030		Control-temperature				$ 94.98
27	216629601		Screw, Hex Washer Head, 10-16 X 0.500, Tapping				$ 13.01
28	297322000		Hinge Assy				$ 109.15
30	216110700		Breaker, Corners				$ 28.45
59	216916203		Basket, Blue/gray, Upper				$ 63.95
71	5303302714		Screw, #8-18 X .75		Appelez-nous	-
74	216486700		Support, Divider, (4)				$ 51.40
75	216034301		Panel, Access, White				$ 103.01
173A	297063001		Divider, Chest, Step				$ 33.02
173B	297063101		Divider, Small Chest				$ 115.97
173C	297063302		Divider				$ 111.85
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297090402		Energy Guide		Appelez-nous	-
