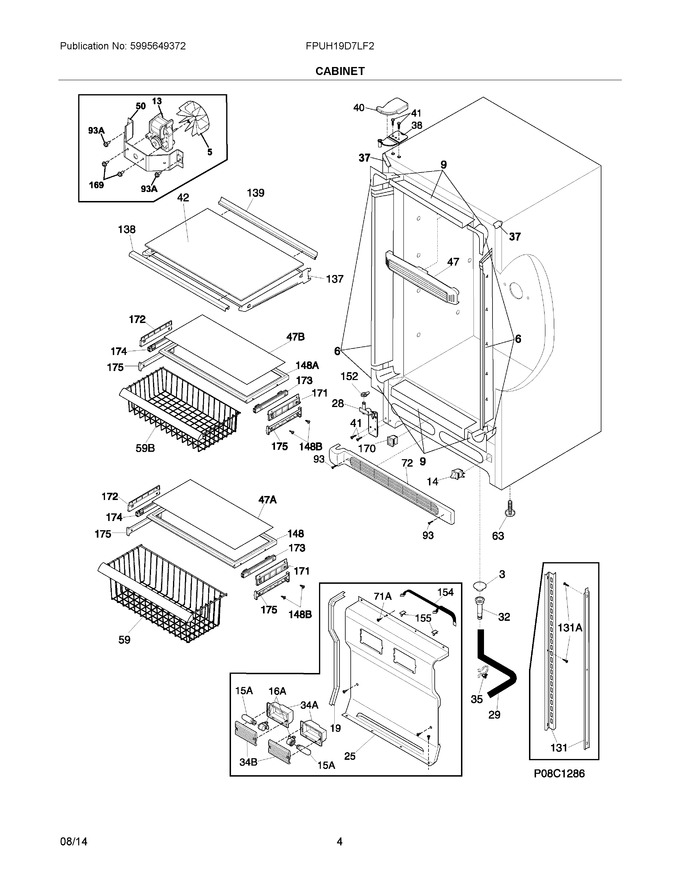

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297259600		Fan Blade, Evaporator				$ 9.50
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp   (Replaces: 216822901)			Immediately	$ 70.16
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099254		Cover-evaporator				$ 97.13
28	5303018741		Hinge-lower, Lh W/bearing   (Replaces: 297302511)			Immediately	$ 42.12
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273903		Trim-cabinet Corner, Silver Mist, (2)		Appelez-nous	-
38	297303901		Hinge-upper, Lh				$ 23.49
40	297304001		Cover-hinge, Gray, Lh				$ 73.00
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297265900		Glass-shelf				$ 156.15
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 25.31
50	08013207		Bracket-fan Motor				$ 12.92
59	297270000		Basket, Assy Bottom				$ 214.52
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate, 32", Gray   (Replaces: 297036904)				$ 39.29
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
131	297130200		Channel-shelf Mtg, Side, (2)				$ 55.99
137	297050600		Frame-shelf, Cantilever, (2)			Immediately	$ 179.29
138	297261400		Trim-shelf, Front				$ 33.18
139	297261500		Trim-shelf, Rear				$ 26.04
148	297271703		Frame, Crisper-cover, Btm				$ 204.59
152	297302700		Bearing-hinge		Appelez-nous	-
154	297053000		Wire, Jumper				$ 57.42
155	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280403		Valve, Breather				$ 21.69
171	297092700		Bracket, Crisper Cover, Rh				$ 55.36
172	297092701		Bracket, Crisper Cover, Lh				$ 56.88
173	5304517648		Slide-basket, Rh, W/clips   (Replaces: 297291200)			Immediately	$ 72.30
174	5304517649		Slide-basket, Lh, W/clips   (Replaces: 297291201)				$ 78.08
175	297099500		Support, Crisper			Immediately	$ 47.03
131A	297146821		Screw, Th, 8-18x.470 Ab Qx, White, (6)				$ 4.94
148A	297271704		Frame, Crisper, Mid-level				$ 189.24
148B	297142600		Screw, Blunt, 8-32 X 5/8				$ 13.01
15A	241552802		Light Bulb/lamp, Short   (Replaces: 297048600)			Immediately	$ 50.45
16A	297139501		Socket, Light/lamp, 25 W				$ 19.52
34A	297053102		Shield-light				$ 31.76
34B	297053200		Lens, Light				$ 43.95
47A	297102705		Glass, Crisper Cover				$ 141.04
47B	297102704		Glass, Crisper Cover				$ 146.76
59B	297269700		Basket, Assy-mid Level				$ 203.23
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297305500		Clip, Crisper				$ 13.42
NI	297330100		Energy Guide		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
