SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

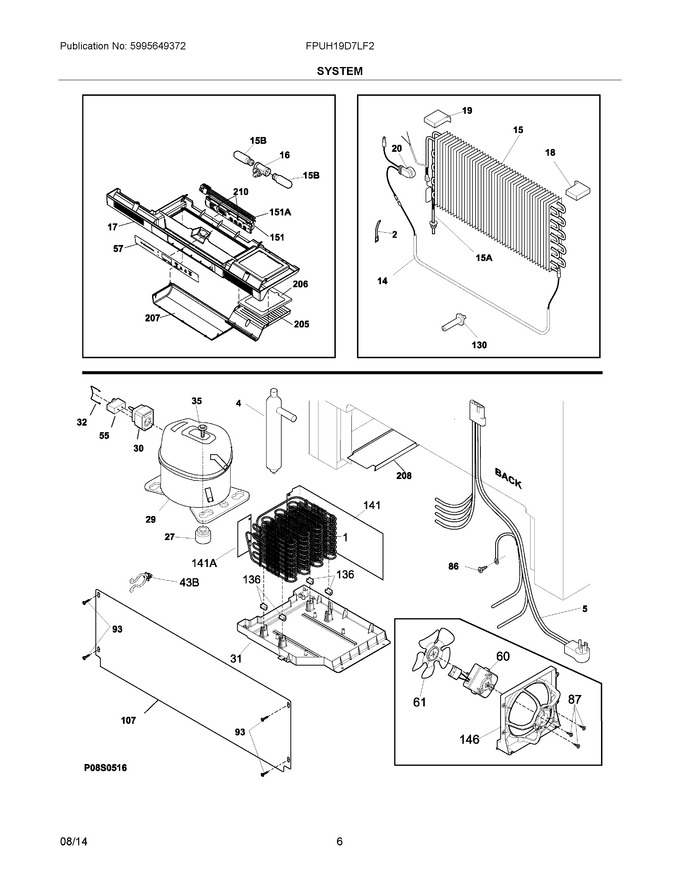

03 - Cabinet


04 - System


05 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 216987501)			Immediately	$ 31.67
5	297327501		Harness-main				$ 134.77
14	216730700		Heater-defrost			Immediately	$ 116.44
15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 171.34
16	241622802		Socket-light, Frz Light				$ 65.93
17	297269000		Box-control				$ 140.12
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
20	297216600		Thermostat, Defrost			Immediately	$ 27.52
27	297293300		Grommet, Compressor		Appelez-nous	-
29	240550948		Compressor, W/o Electricals   (Replaces: 297223500)			Immediately	$ 292.50
30	216954218		Controller				$ 91.01
31	297165800		Pan-drain				$ 89.15
32	216954300		Clip, Controller				$ 17.01
35	240491503		Screw-compressor Mtg, 1/4-28 X 1.16, (4)				$ 13.95
55	297286803		Capacitor-run			Immediately	$ 28.77
57	297269400		Overlay				$ 31.19
60	297279500		Motor-condenser Fan			Immediately	$ 141.66
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
87	5304463290		Screw, Hi-lo Blunt, #8-18x1/2		Appelez-nous	-
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
100	297366805		Cord, Power   (Replaces: 297366800)				$ 68.68
107	297165400		Shield, Compressor, Compartment				$ 19.85
130	297244700		Support, Evaporator Mtg				$ 4.26
136	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
141	297164200		Divider, Air Flow				$ 26.23
146	297164000		Shroud-fan Orfice				$ 76.97
151	297326502		Electronic Control, Assembly				$ 275.90
205	297294301		Holder, Air Filter				$ 34.31
206	EAFCBF		Filter, Air   (Replaces: 242047801)			Immediately	$ 27.64
207	297294500		Shield-light, Clear				$ 51.46
208	297355201		Guard-wire		Appelez-nous	-
210	216905301		Screw, Ph 3-24x.25, Electronic Assy				$ 14.46
141A	297194700		Divider, Small, Air Flow		Appelez-nous	-
151A	5304495182		Harness-jumper				$ 137.10
15A	297217900		Heat Exchanger, Suct/cap Tube			Immediately	$ 91.82
15B	5304517886		Light Bulb, Short, Blue Tint, 40w   (Replaces: 297114000)			Immediately	$ 73.06
43B	297315800		Clip, Wire				$ 10.13
NI	297110400		Thermistor			Immediately	$ 72.68
NI	216502500		Sleeve, Suction Line				$ 10.85
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
NI	297014702		Plug-suction Line				$ 9.41
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NIA	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41

    View Diagram in Separate Window       Print Part List
