SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

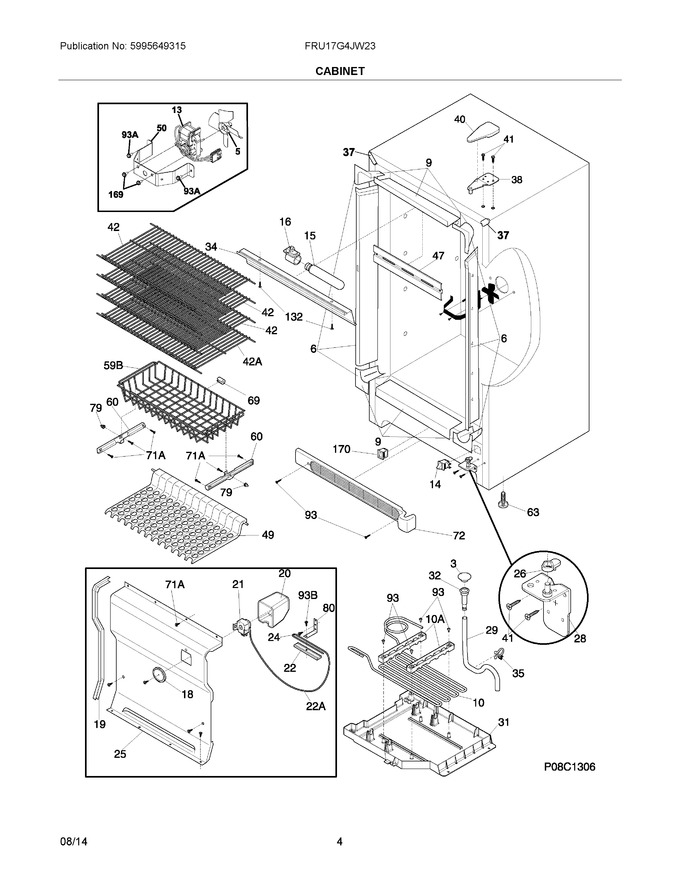

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	297200600		Breaker Kit W/corners, No Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
10	297334500		Heater-drain Pan				$ 72.30
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	216707200		Knob, Temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	216967201		Cover, Temp Control				$ 15.18
21	297415203		Control, Temperature   (Replaces: 297415201)				$ 125.79
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297099250		Cover-evaporator				$ 111.25
26	216503300		Ramp, Door Closer				$ 8.82
28	297283900		Hinge-bottom, Stepped Pin			Immediately	$ 54.23
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	297165800		Pan-drain				$ 89.15
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816200		Shield-light				$ 70.72
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297166800		Glass-shelf				$ 170.47
47	216661601		Baffle-plate				$ 51.76
49	216937701		Trivet   (Replaces: 216937700)				$ 99.77
50	216394050		Bracket, Fan Motor Mount				$ 22.75
59	297344000		Basket, Bottom				$ 102.06
60	297013500		Slide, Shelf				$ 38.98
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate, 32", White   (Replaces: 297036900)				$ 39.29
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
132	5304460601		Screw, 6-20ab X 3/8		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
10A	297177400		Bracket, (2), Drain Pan		Appelez-nous	-
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 60.96
42A	297119501		Shelf, 12.50x27.88, White		Appelez-nous	-
59A	216486500		Stop-basket, (2)				$ 20.58
59B	297343800		Basket				$ 96.12
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	216697904		Energy Guide		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
