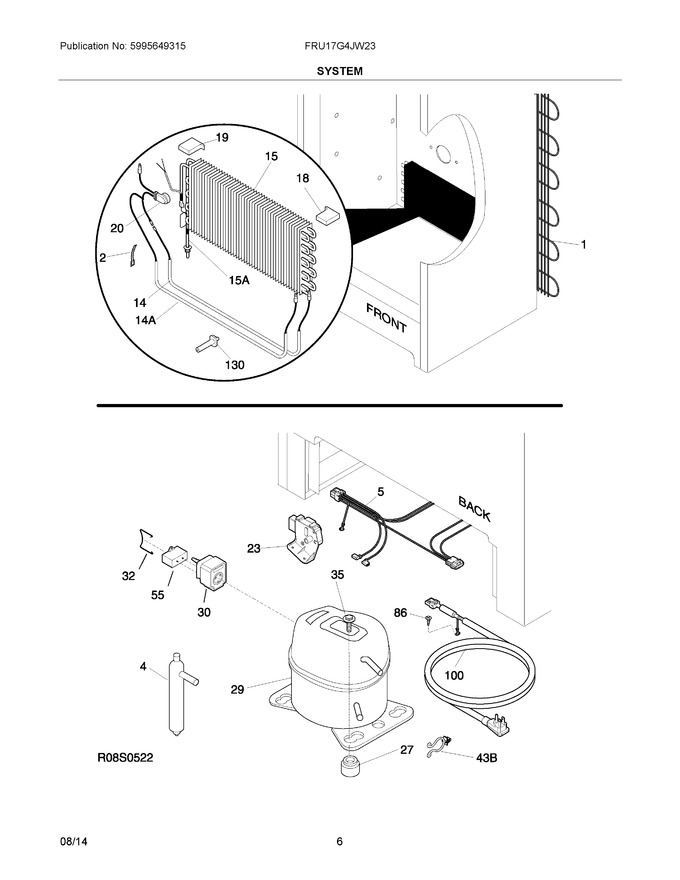

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396860)			Immediately	$ 31.67
5	297244600		Harness-main				$ 130.44
14	297253602		Defrost Heater   (Replaces: 297216102)				$ 85.69
15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 171.34
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
20	216731001		Thermostat, Defrost			Immediately	$ 84.46
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 57.55
27	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
29	5304507767		Compressor, W/o Electricals   (Replaces: 216966300)				$ 726.41
30	216954200		Controller, Compressor, 5 Speed				$ 63.79
32	216954300		Clip, Controller				$ 17.01
35	297368500		Bolt, Compressor		Appelez-nous	-
55	216985011		Capacitor-run, 10 Mf				$ 27.64
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
100	297366805		Cord, Power   (Replaces: 297366804)				$ 68.68
130	297244700		Support, Evaporator Mtg				$ 4.26
14A	297222901		Heater				$ 73.40
15A	297217900		Heat Exchanger   (Replaces: 297440900)			Immediately	$ 91.82
43B	297315800		Clip, Wire				$ 10.13
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	216683900		Thermostat, Service Part				$ 61.62
NI	216502500		Sleeve, Suction Line				$ 10.85
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
NIA	216695300		Relay				$ 77.97
