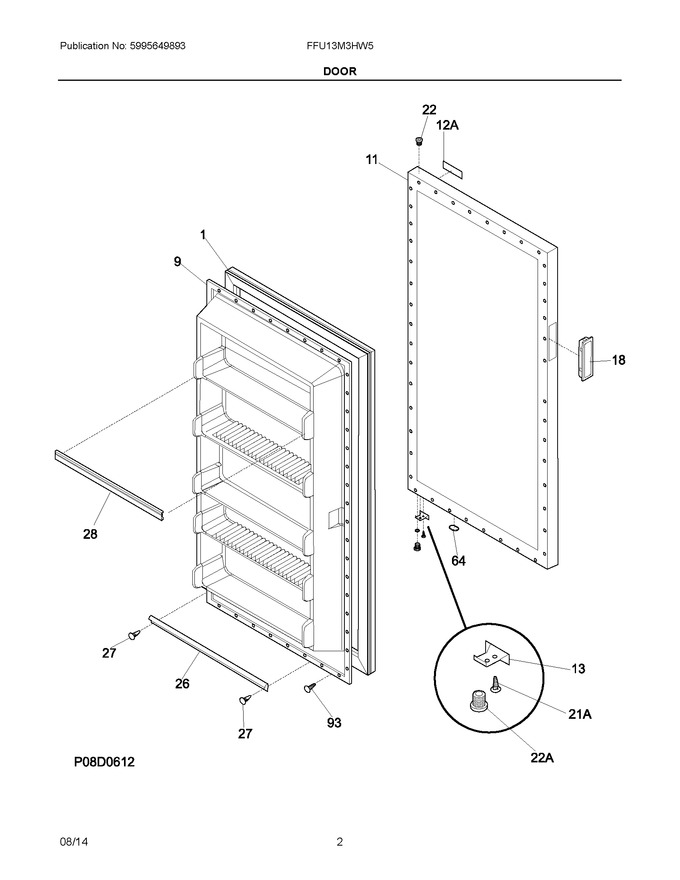

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507201 | Gasket, Door Seal, White (Replaces: 216522356) |
|
Immediately | $ 185.36 | ||||
| 9 | 216527617 | Panel-inner Door, Frzr |
|
$ 207.48 | |||||
| 11 | 297352500 | Panel-outer Door, White |
|
$ 241.88 | |||||
| 13 | 297257000 | Door Stop, Chrome, Rh |
|
$ 16.63 | |||||
| 18 | 297034200 | Handle, Recessed, White, Incl/gasket |
|
$ 13.00 | |||||
| 22 | 216970802 | Bearing, Hinge W/o'ring, Top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524301 | Gasket, Secondary |
|
$ 10.87 | |||||
| 27 | 5304472186 | Clip, Panel Mtg |
|
$ 11.57 | |||||
| 28 | 216951601 | Rack-door, (5) |
|
$ 44.68 | |||||
| 64 | 216403700 | Plug-button, Hole Filler, Door Base |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw, Ph Truss Head, 8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 12A | 242062801 | Nameplate, White |
|
$ 11.65 | |||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 14.46 | |||||
| 22A | 297006800 | Bearing-hinge, Btm, W/o'ring |
|
$ 12.29 | |||||
| NI | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 125.83 |
