SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

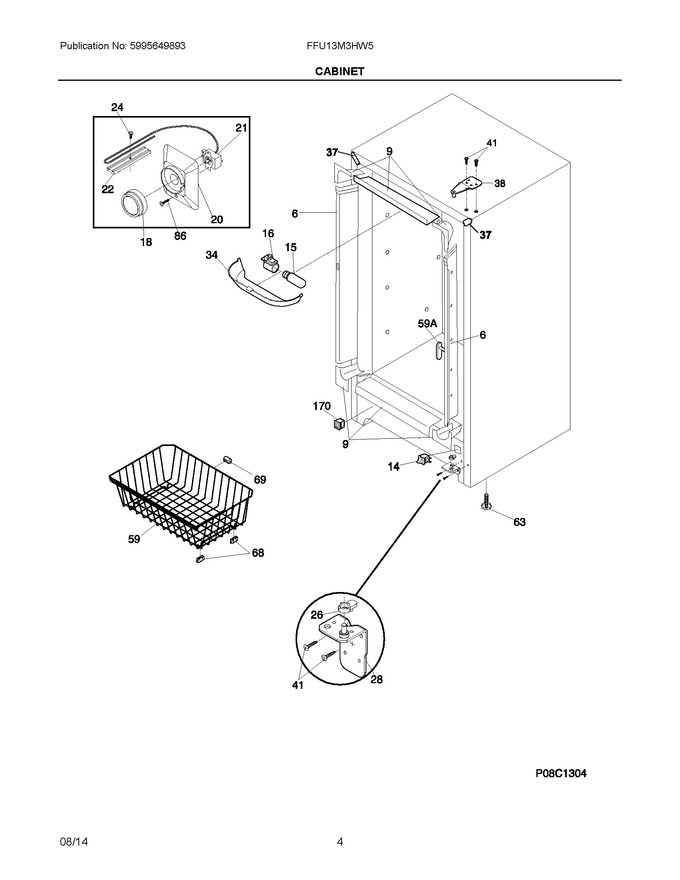

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	297200300		Breaker Kit W/corners, No Lock Slot				$ 39.69
9	297200200		Breaker Kit W/corners, 28", Top And Bottom				$ 45.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	216707200		Knob, Temp Control				$ 44.10
20	297013800		Cover-control Housing				$ 80.43
21	5304514707		Control-temperature   (Replaces: 297053911)			Immediately	$ 70.49
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
26	216503300		Ramp, Door Closer				$ 8.82
28	297283900		Hinge-bottom, Stepped Pin			Immediately	$ 54.23
34	297184400		Shield-light				$ 21.16
37	5303918606		Trim-cabinet Corner, White, (2)   (Replaces: 241611301)				$ 7.09
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
59	5304497655		Basket, Bottom   (Replaces: 297343300)				$ 120.28
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide-basket				$ 35.25
69	5305878546		Bumper-basket				$ 7.23
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
170	297280400		Valve, Breather				$ 10.13
37A	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 7.59
59A	216486500		Stop-basket, (2)				$ 20.58
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297010201		Service Data Sheet		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
