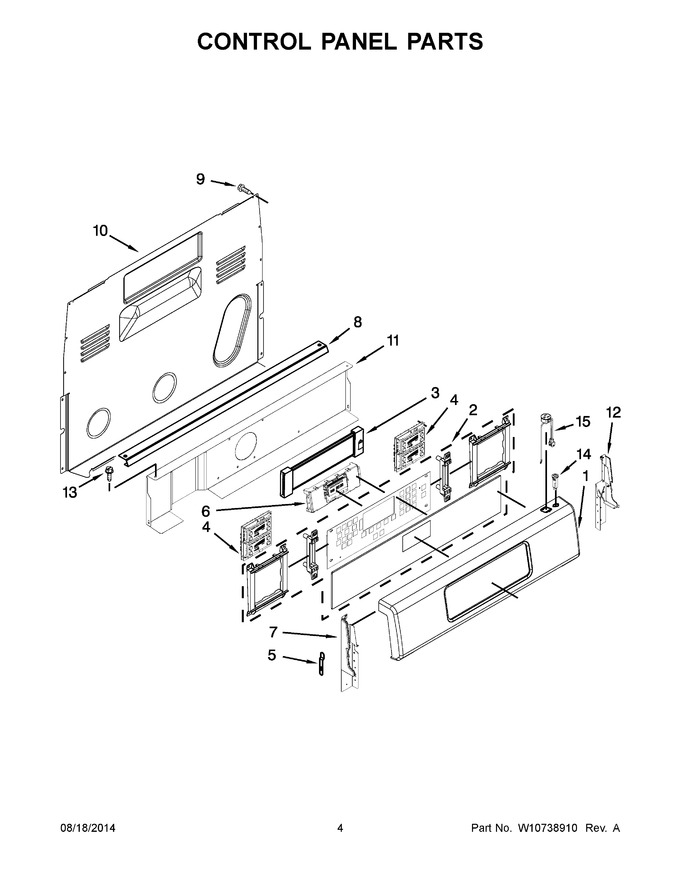

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10614438 | Console, Panel (stainless) |
|
$ 205.18 | |||||
| 2 | W10324412 | Assembly, Membrane |
|
- | |||||
| 3 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 102.81 | |||||
| 4 | WPW10341243 | User Interface (left) (Replaces: W10341243) |
|
Immediately | $ 521.18 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 6 | WPW10686474 | Control, Mrc (Replaces: W10686474) |
|
$ 406.97 | |||||
| 7 | W11404310 | Endcap (black (left Hand)) (Replaces: W10409002) |
|
$ 66.00 | |||||
| 8 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 9 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 12 | W10409003 | Endcap (black) (right Hand) |
|
$ 72.08 | |||||
| 13 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 14 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 15 | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 16.62 | ||||
| 4A | WPW10553762 | User Interface (right) (Replaces: W10553762) |
|
Immediately | $ 493.58 |
