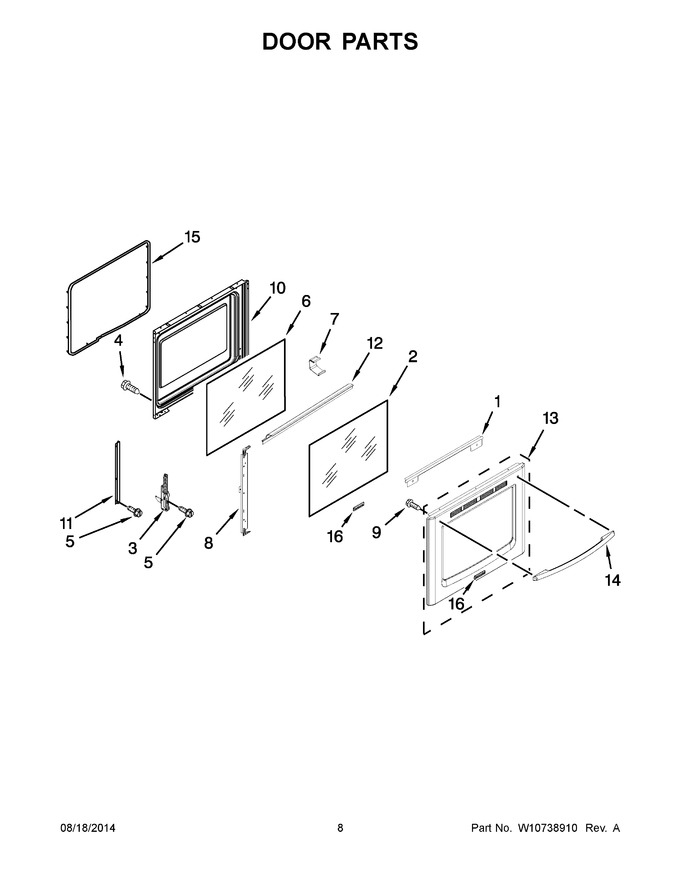

| 1 | W10339814 | Trim, Door (black) |
|
$ 139.33 | |||||
| 2 | WPW10495964 | Glass, Outer Door (stainless) (Replaces: W10495964) |
|
$ 319.58 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 6 | WPW10300487 | Glass, Inner (double Coated) (Replaces: W10300487) |
|
$ 227.18 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 114.64 | |||||
| 9 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 | |||||
| 10 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 284.15 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 203.18 | ||||
| 13 | WPW10490829 | Glass Assembly, Outer Door (stainless) (Replaces: W10490829) |
|
$ 323.11 | |||||
| 14 | WPW10289076 | Handle, Door (stainless) (Replaces: W10289076) |
|
$ 286.81 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 16 | WPW10243391 | Badge (grey) (Replaces: W10243391) |
|
$ 49.98 |
