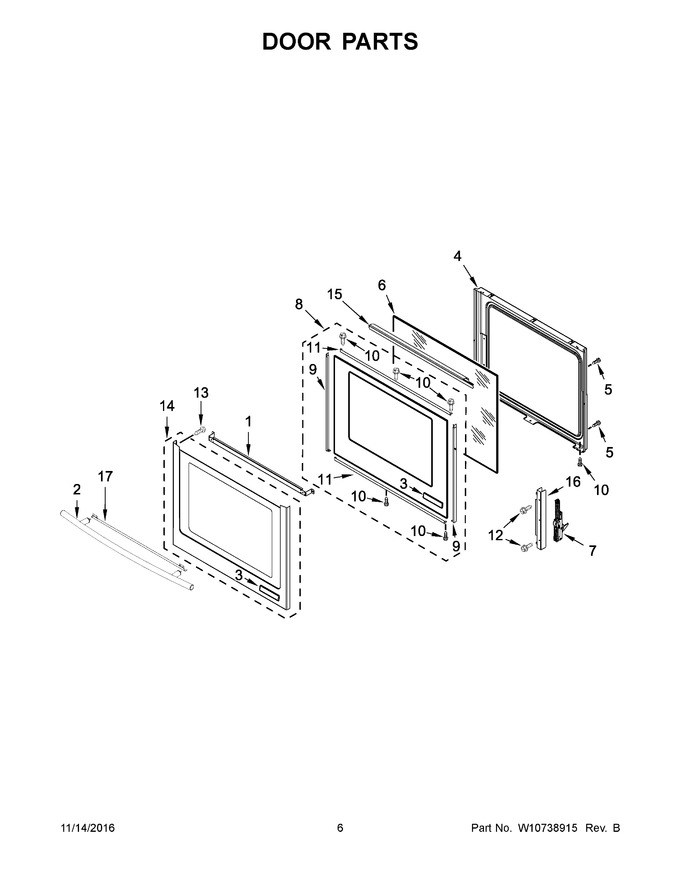

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 34.22 | ||||
| 2 | W10550998 | Assembly, Door Handle (black) |
|
- | |||||
| 3 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 73.67 | |||||
| 4 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 329.70 | |||||
| 7 | W10541886 | Hinge, Slow Close |
|
$ 187.29 | |||||
| 8 | WPW10541892 | Panel, Door (black) (Replaces: W10541892) |
|
$ 353.76 | |||||
| 9 | W10634236 | Trim, Door Side (black) |
|
- | |||||
| 10 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 12.65 | ||||
| 11 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 13 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 14 | WPW10634268 | Assembly, Outer Door (stainless) (Replaces: W10634268) |
|
$ 342.68 | |||||
| 15 | W11251351 | Liner, Door Scoop (black) (Replaces: W10613791) |
|
Immediately | $ 119.72 | ||||
| 16 | W10541883 | Hinge, Support Rail |
|
$ 38.48 | |||||
| 17 | W10634234 | Door, Trim Top |
|
- | |||||
| 15A | W11025120 | Liner, Door Scoop (stainless) (Replaces: W10551024) |
|
$ 105.44 | |||||
| 2A | W11195001 | Assembly, Door Handle (stainless) (Replaces: W10551013) |
|
$ 196.68 | |||||
| 3A | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 73.67 |
