01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

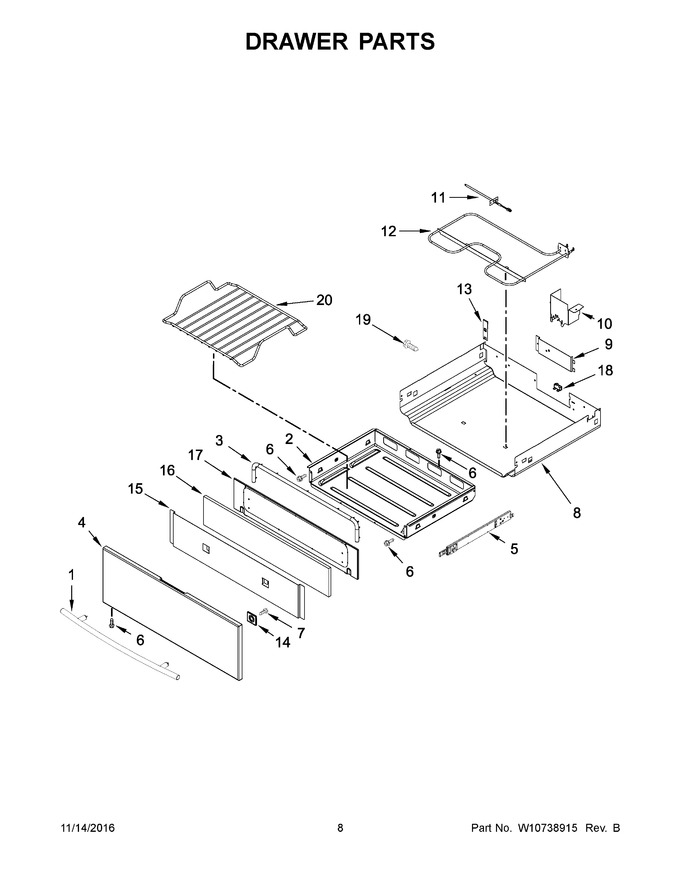

| 1 | W10550998 | Handle, Drawer (black) |
|
- | |||||
| 2 | W11036176 | Drawer, Bake (Replaces: W10757442) |
|
$ 187.42 | |||||
| 3 | W10550987 | Seal, Drawer |
|
$ 146.03 | |||||
| 4 | W10541957 | Panel, Drawer Front (black) |
|
$ 204.51 | |||||
| 5 | W11670722 | Slide, Drawer (left) (Replaces: W10921904) |
|
Immediately | $ 120.65 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 8 | W10634260 | Enclosure, Warming |
|
Immediately | $ 179.16 | ||||
| 9 | W10727084 | Cover, Gas Valve |
|
$ 75.07 | |||||
| 10 | W10634259 | Cover, Wire |
|
$ 75.29 | |||||
| 11 | W11676788 | Sensor (Replaces: W10720530) |
|
Immediately | $ 46.04 | ||||
| 12 | W10541944 | Element, Bake |
|
Immediately | $ 141.31 | ||||
| 13 | W10551019 | Cover, Side |
|
$ 76.36 | |||||
| 14 | W11190816 | Spacer, Handle (Replaces: 3823F017-45) |
|
$ 14.94 | |||||
| 15 | W10551018 | Insulation, Drawer Front |
|
$ 96.71 | |||||
| 16 | W11688515 | Insulation, Drawer (Replaces: W10550982) |
|
$ 102.46 | |||||
| 17 | W10541947 | Panel, Front Inner |
|
$ 147.11 | |||||
| 18 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 19 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 20 | W10602493 | Rack, Bake Drawer |
|
$ 530.62 | |||||
| 1A | W11195001 | Handle, Drawer (stainless) (Replaces: W10551013) |
|
$ 196.68 | |||||
| 4A | W10541958 | Panel, Drawer Front (stainless) |
|
$ 169.79 | |||||
| 5A | W11670723 | Slide, Drawer (right) (Replaces: W10921905) |
|
Immediately | $ 120.65 |
