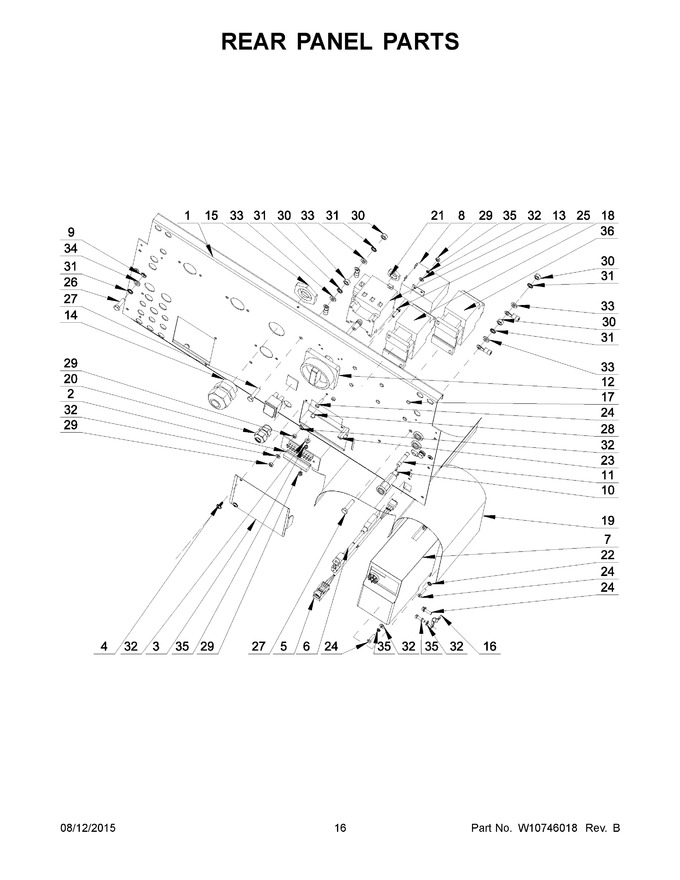

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725518 | Rear Panel - Complete |
|
- | |||||
| 2 | W10286355 | Led Board Mc5 |
|
- | |||||
| 3 | W10725522 | Rear Panel, Lid |
|
- | |||||
| 4 | W10711800 | Screw M4x11 |
|
- | |||||
| 5 | W10713154 | Cable Connector, Rs485 |
|
- | |||||
| 6 | W10713157 | Cable, Usb - Rear Panel Connector |
|
- | |||||
| 7 | W10415735 | Frequency Inverter |
|
- | |||||
| 8 | W10713112 | Rfi Filter |
|
- | |||||
| 9 | 23001575 | Nut, Insert M6 |
|
- | |||||
| 10 | 23001462 | Fuse Holder (5x20mm) |
|
- | |||||
| 11 | W11199418 | Fuse 0.5a (Replaces: 23004315) |
|
- | |||||
| 12 | 23003497 | Main Switch Knob |
|
- | |||||
| 13 | 23003500 | Main Switch 25a |
|
- | |||||
| 14 | 23004494 | Large Strain Relief |
|
- | |||||
| 15 | 23004495 | Large Strain Relief Nut |
|
- | |||||
| 16 | W10713152 | Cable Clamp |
|
- | |||||
| 17 | 23002362 | Rivet W/crank (4x7) |
|
- | |||||
| 18 | 23003750 | Contactor Lc1 D09m7 |
|
- | |||||
| 19 | W10725556 | Cover, Motor - Frequency Inverter |
|
- | |||||
| 20 | 23004396 | Small Strain Relief M16 |
|
- | |||||
| 21 | 23004398 | Small Strain Relief Nut M16 |
|
- | |||||
| 22 | 23002950 | Washer, Lock M4 |
|
- | |||||
| 23 | 23002473 | Foam Connector Gasket |
|
$ 4.52 | |||||
| 24 | 23002398 | Bolt M4x16 |
|
- | |||||
| 25 | 23004095 | Bolt M4x16 |
|
- | |||||
| 26 | 23002462 | Bolt M6x20 |
|
$ 5.14 | |||||
| 27 | 23002806 | Bolt M6x25 |
|
- | |||||
| 28 | 23001682 | Bolt M4x8 |
|
- | |||||
| 29 | 23003666 | Nut M4 |
|
- | |||||
| 30 | 23002651 | Nut M6 |
|
- | |||||
| 31 | 23002425 | Washer, Lock M6 |
|
$ 473.30 | |||||
| 32 | 23002438 | Washer M4.3 |
|
- | |||||
| 33 | 23003767 | Washer M6.4 |
|
- | |||||
| 34 | 23002424 | Washer M6.4 |
|
- | |||||
| 35 | 23002400 | Washer M4 |
|
- | |||||
| 36 | W10286352 | Transformer |
|
- | |||||
| 10A | 23002210 | Fuse Holder (6x32mm) |
|
- | |||||
| 11A | WP22001555 | Fuse 1a 6x32 (Replaces: 23003385) |
|
Immediately | $ 27.33 | ||||
| 2A | W10665044 | Cable, Pump Relay Board To Led Terminal |
|
- | |||||
| 7A | W10725529 | Cable, Communication |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10725561 | Wiring, Main |
|
- | |||||
| NI | W10713166 | Kit, Liquid Soap Supply Connection |
|
- |
