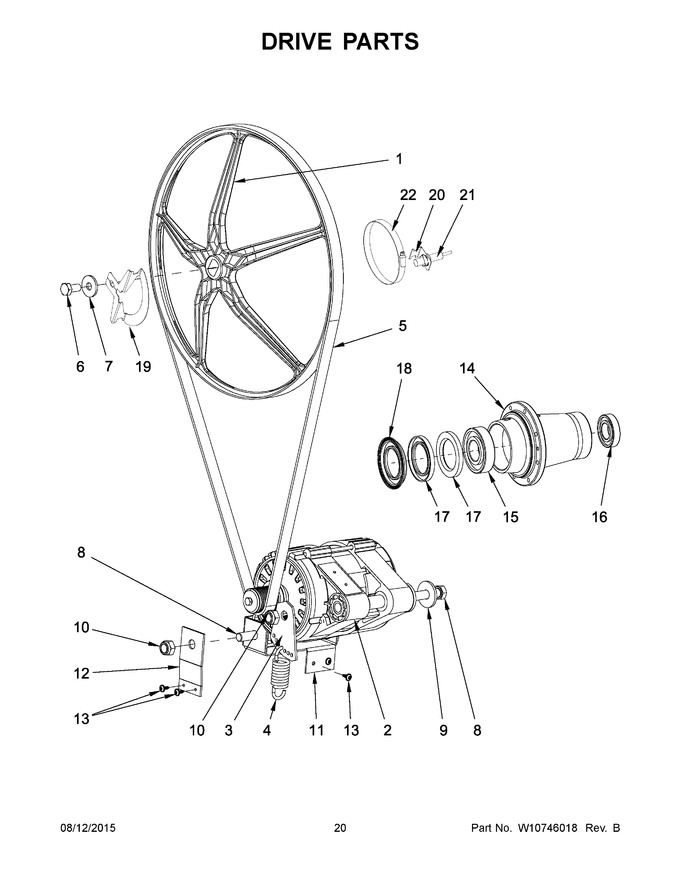

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725737 | V-pulley Drum |
|
- | |||||
| 2 | W10725747 | Motor (230v/75hz) |
|
- | |||||
| 3 | W10725752 | Spring Holder |
|
- | |||||
| 4 | 23004156 | Spring, Tension |
|
- | |||||
| 5 | W10725758 | Belt |
|
- | |||||
| 6 | 23002278 | Bolt M16x30 |
|
- | |||||
| 7 | W10654354 | Motor Pulley Washer |
|
- | |||||
| 8 | W10713999 | Bolt M12x220 |
|
- | |||||
| 9 | 23004146 | Washer M12 |
|
- | |||||
| 10 | W10357141 | Nut M12 |
|
- | |||||
| 11 | W10725767 | Motor Holder |
|
- | |||||
| 12 | W10725778 | Holder |
|
- | |||||
| 13 | W10711800 | Screw M4x11 |
|
- | |||||
| 14 | W10714016 | Bearing Housing |
|
- | |||||
| 15 | 23003076 | Bearing (6312) |
|
- | |||||
| 16 | 23003614 | Bearing (6310) |
|
- | |||||
| 17 | 23003850 | Ring Seal 100x130x10 |
|
- | |||||
| 18 | W10714026 | Ring Seal 100x130/144x9/12 |
|
- | |||||
| 19 | W10747778 | Plate, Speed Sensor |
|
- | |||||
| 20 | W10747779 | Bracket, Speed Sensor |
|
- | |||||
| 21 | W10747780 | Speed Sensor |
|
- | |||||
| 22 | W10748075 | Hose Clamp (140-160) |
|
- | |||||
| 2A | W10725748 | Motor (400v/76hz) |
|
- |
