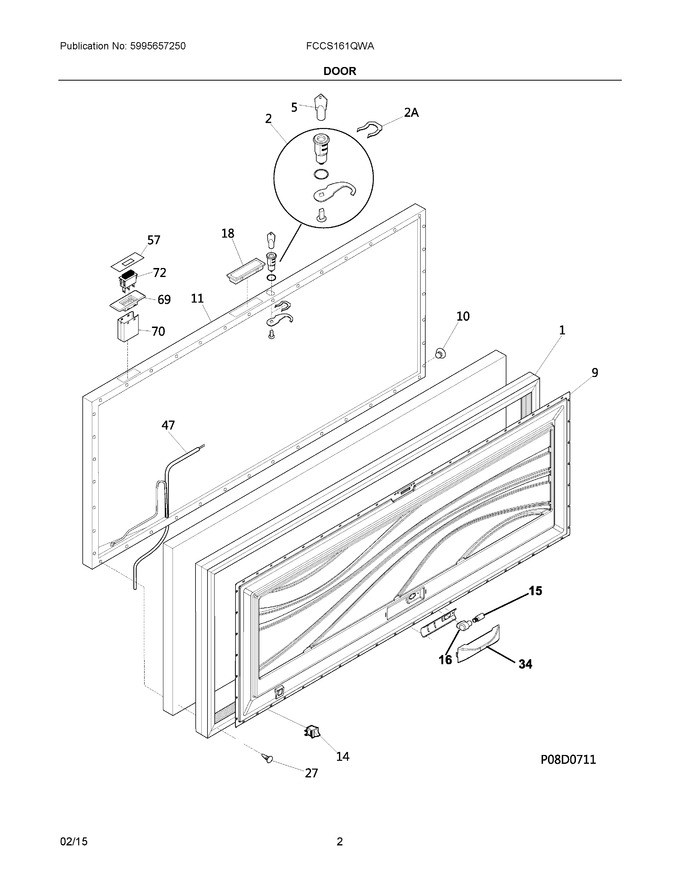

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481301		Gasket-door, White				$ 320.06
2	297090100		Lock Assy				$ 21.27
5	297147700		Key, Lock			Immediately	$ 7.57
9	297376000		Panel-inner Door, Frzr				$ 138.57
10	216923001		Plug Button, 1/4", White				$ 9.87
11	216130030		Panel-outer Door/lid, White		Appelez-nous	-
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	297070300		Light Bulb, 25w, 130v				$ 63.51
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	297034202		Handle, Recessed, Chrome, W/gasket				$ 39.43
27	5303212828		Clip, Panel Mtg				$ 16.63
34	297438600		Sheild, Light				$ 178.61
47	297068900		Harness-lid		Appelez-nous	-
53	5304493988		Shield, Heat				$ 14.89
57	297069900		Overlay, Max Freeze		Appelez-nous	-
69	297069700		Bezel, Switch, Max Freeze		Appelez-nous	-
70	297069800		Cap, Seal, Switch		Appelez-nous	-
72	297070000		Switch, Rocker		Appelez-nous	-
2A	297090900		Clip, Spring				$ 10.85
NI	5303925098		Insulation				$ 120.65
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83
