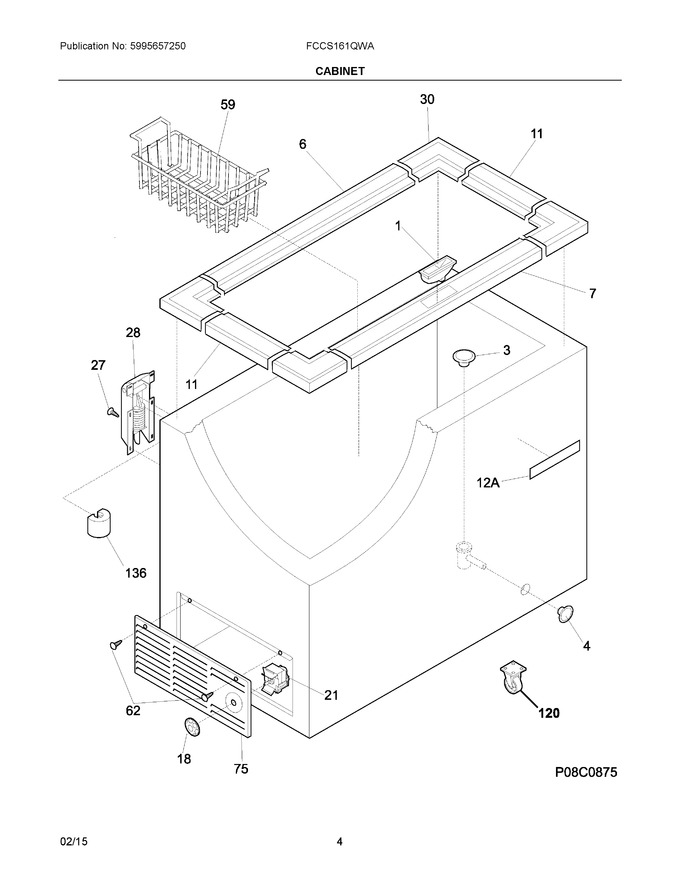

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
2	216269500		Adapter, Drain Hose				$ 14.81
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	5304493711		Breaker, W/o Lock		Appelez-nous	-
7	5304494732		Breaker, W/lock		Appelez-nous	-
11	5304493668		Breaker, White, Chest End				$ 16.22
18	216707201		Knob, Temp Control				$ 37.54
21	297216043		Control-temperature   (Replaces: 297216036)				$ 49.16
27	216629601		Screw, Hex Washer Head, 10-16 X 0.500, Tapping				$ 13.01
28	297321900		Hinge Assy				$ 90.01
30	5304495365		Breaker, White, Corners				$ 19.14
59	297404901		Basket		Appelez-nous	-
71	5303302714		Screw, #8-18 X .75		Appelez-nous	-
75	216034301		Panel, Access, White				$ 103.01
120	216621000		Caster		Appelez-nous	-
136	216726600		Guard-splash		Appelez-nous	-
12A	297073400		Nameplate, Commercial, Stainless				$ 124.03
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297151500		Caster Pack, 4 Casters, Wrench, 16 Screws		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
