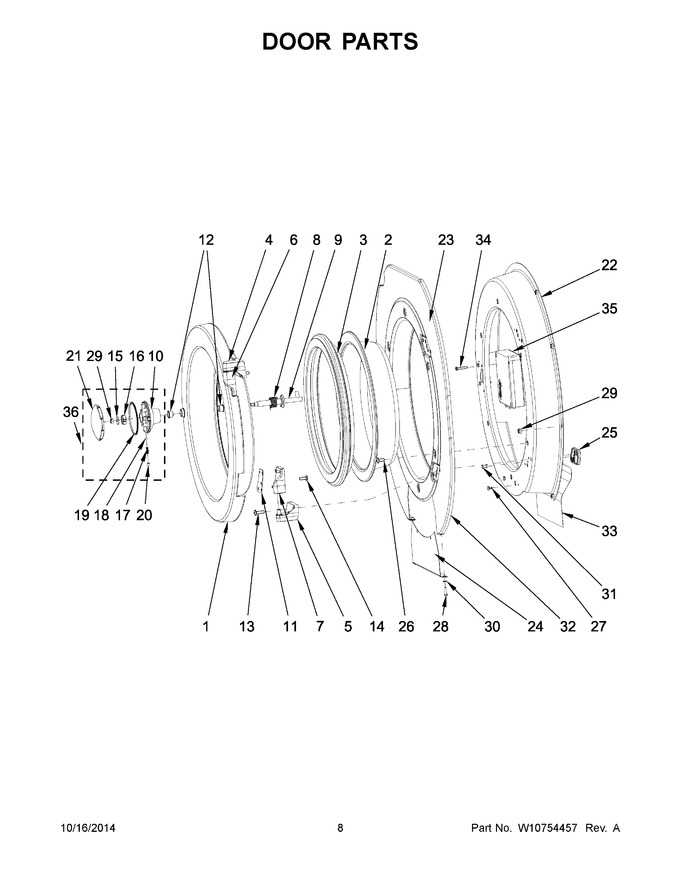

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10712296 | Door (grey) |
|
- | |||||
| 2 | W10712300 | Door Glass |
|
- | |||||
| 3 | W10712304 | Door Seal |
|
- | |||||
| 4 | W10712306 | Upper Hinge - Fixed |
|
- | |||||
| 5 | W10712307 | Lower Hinge - Fixed |
|
- | |||||
| 6 | W10712308 | Upper Hinge |
|
- | |||||
| 7 | W10712309 | Lower Hinge |
|
- | |||||
| 8 | W10712314 | Torsion Spring Of Handle |
|
- | |||||
| 9 | W10712315 | Lock Pin, Handle |
|
- | |||||
| 10 | W10712316 | Inner, Handle |
|
- | |||||
| 11 | W10712317 | Washer, Hinge |
|
- | |||||
| 12 | W10712318 | Casing, Lock Pin |
|
- | |||||
| 13 | W10712319 | Bolt M6x25 |
|
- | |||||
| 14 | W10712320 | Bolt M6x16 |
|
- | |||||
| 15 | 23003012 | Washer M6 |
|
- | |||||
| 16 | W10712323 | Locating Segment,handle |
|
- | |||||
| 17 | W10712328 | Compression Spring, Handle |
|
- | |||||
| 18 | W10712344 | Handle Ball |
|
- | |||||
| 19 | W10712345 | Distinguishing Ring (blue) |
|
$ 18.56 | |||||
| 20 | W10712347 | Bolt M6x6 |
|
- | |||||
| 21 | W10712351 | Cover, Handle |
|
- | |||||
| 22 | W10712357 | Door And Lock Holder Complete |
|
- | |||||
| 23 | W10712360 | Front Panel |
|
- | |||||
| 24 | W10712363 | Front Cover Of Heating Element |
|
- | |||||
| 25 | W10712366 | Washer, Hinge |
|
- | |||||
| 26 | W10712367 | Bolt M6x14 |
|
- | |||||
| 27 | W10712368 | Plastic Plug |
|
- | |||||
| 28 | 23002398 | Bolt M4x16 |
|
- | |||||
| 29 | 23001310 | Nut M6 |
|
- | |||||
| 30 | 23002438 | Washer M4.3 |
|
- | |||||
| 31 | W10711789 | Rivet W/crank (4x16) |
|
- | |||||
| 32 | 23004093 | Riveting Blind Nut M4 |
|
- | |||||
| 33 | 23002877 | Shield, Rain |
|
- | |||||
| 34 | W10712370 | Bolt M5x25 |
|
- | |||||
| 35 | W10712373 | Door Lock |
|
- | |||||
| 36 | W10712375 | Handle Complete |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10712376 | Wiring, Door Lock |
|
- |
