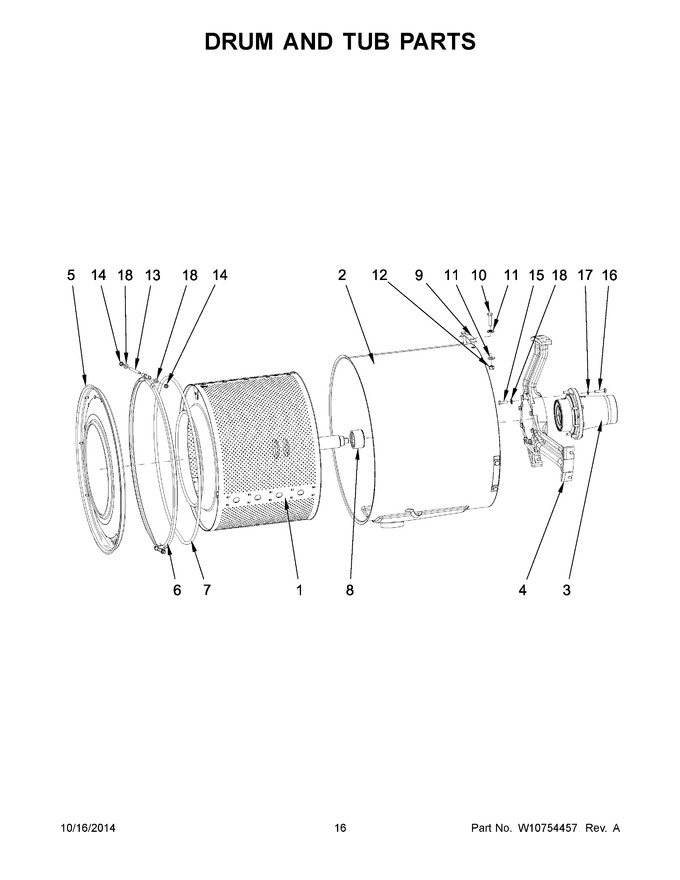

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725706		Drum, Washer - Complete		Appelez-nous	-
2	W10713389		External Tub - Complete, Electrical Heating		Appelez-nous	-
3	W10725711		Trunnion - Complete		Appelez-nous	-
4	W10713400		Support, Tub		Appelez-nous	-
5	W10713407		Front Tub Panel - Complete		Appelez-nous	-
6	W10713411		Clamp - Complete		Appelez-nous	-
7	W10713414		Seal D10-2100mm		Appelez-nous	-
8	W10713945		Sealing Sleeve		Appelez-nous	-
9	W10713948		Washer, Cross		Appelez-nous	-
10	W10304863		Bolt M10x40		Appelez-nous	-
11	23002988		Washer M10		Appelez-nous	-
12	23001241		Nut M10				$ 2,647.47
13	23002486		Bolt M8		Appelez-nous	-
14	23002487		Nut M8		Appelez-nous	-
15	23003419		Screw M8x24		Appelez-nous	-
16	23003765		Bolt M8x35		Appelez-nous	-
17	23003769		Washer M8		Appelez-nous	-
18	23001608		Washer M8.4		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10713950		Screw Lock		Appelez-nous	-
