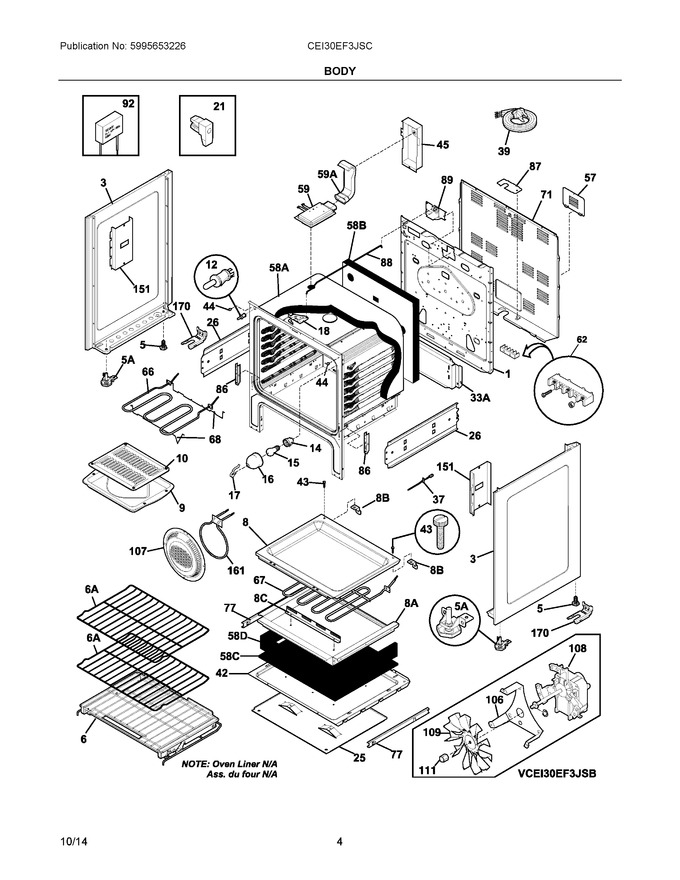

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316502005 | Back, Main |
|
- | |||||
| 3 | 316400144 | Panel, Bodyside, Black, Rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 5 | 316272900 | Screw, Leveling, Plastic, Rear, (2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316571800 | Rack Assembly, W/glides |
|
$ 290.93 | |||||
| 8 | 316505602 | Panel, Cobalt, Oven Bottom |
|
$ 158.06 | |||||
| 9 | 316081901 | Pan, Broiler, Cobalt Blue |
|
$ 74.32 | |||||
| 10 | 316082001 | Insert, Broiler Pan, Cobalt Blue |
|
$ 53.09 | |||||
| 12 | 316445500 | Switch, Oven Light, Door Frame |
|
Immediately | $ 54.74 | ||||
| 14 | 316116400 | Receptacle, Oven Light |
|
Immediately | $ 56.10 | ||||
| 15 | 316538904 | Lamp, Oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 5304524341 | Lens, Oven Light, Glass (Replaces: 318406100) |
|
Immediately | $ 14.18 | ||||
| 17 | 316087500 | Retainer, Lens |
|
$ 56.70 | |||||
| 18 | 316405800 | Latch Assembly, Oven Door |
|
Immediately | $ 56.74 | ||||
| 21 | 316408000 | Clip, Bodyside |
|
$ 18.20 | |||||
| 25 | 316406200 | Shield, Heat, Lower |
|
$ 87.97 | |||||
| 26 | 316409000 | Shield, Warmer Side, (2) |
|
$ 44.47 | |||||
| 37 | 316490000 | Probe, Oven Temp (Replaces: 316490002) |
|
Immediately | $ 58.30 | ||||
| 39 | 318113111 | Cord, Electric |
|
$ 95.55 | |||||
| 42 | 316400701 | Shield, Wool, Lower |
|
$ 162.30 | |||||
| 43 | 316282700 | Screw, W/washer, 8-18 |
|
$ 9.93 | |||||
| 44 | 316517600 | Spacer, Oven Door |
|
$ 12.05 | |||||
| 45 | 316509900 | Shield, Vent Tube |
|
- | |||||
| 57 | 316283600 | Cover, Access |
|
$ 12.50 | |||||
| 59 | 316215200 | Vent Tube, Assembly, W/catalyst |
|
- | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 66 | 316430900 | Element, Broil, 4000w |
|
Immediately | $ 256.20 | ||||
| 67 | 316505500 | Element, Bake, 3000w |
|
Immediately | $ 259.25 | ||||
| 68 | 316429100 | Support, Element, Broil |
|
$ 62.51 | |||||
| 71 | 316283204 | Shield, Rear Wall (Replaces: 316283200) |
|
$ 56.12 | |||||
| 77 | 316456700 | Glide, Warmer Drawer, Outer/rh & Lh, (2) |
|
Immediately | $ 60.96 | ||||
| 86 | 316441300 | Receptacle, Hinge |
|
$ 21.97 | |||||
| 87 | 316081202 | Bracket, Cable Mtg |
|
$ 4.96 | |||||
| 88 | 316203500 | Rod, Auto Latch |
|
$ 72.30 | |||||
| 89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| 92 | 316539900 | Filter, Noise, Lock Motor, Suppressor |
|
$ 68.61 | |||||
| 106 | 316404100 | Bracket, Motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026702 | Cover, Fan |
|
$ 67.94 | |||||
| 108 | 316256100 | Motor-fan |
|
Immediately | $ 211.18 | ||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 151 | 316404601 | Shield, Bodyside |
|
$ 21.27 | |||||
| 161 | 316211603 | Element, Convection Fan, 350 W |
|
$ 255.86 | |||||
| 170 | 316112005 | Anti Tip Kit, Assembly |
|
Immediately | $ 18.91 | ||||
| 33A | 316402100 | Shield, Rear Wall, Lower |
|
$ 47.30 | |||||
| 3A | 316400145 | Panel, Bodyside, Black, Lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 58A | 316406604 | Insulation, Oven Wrapper (Replaces: 316406601) |
|
Immediately | $ 69.77 | ||||
| 58B | 316406502 | Insulation, Oven Back |
|
- | |||||
| 58C | 316509600 | Insulation, Lower Shield |
|
- | |||||
| 58D | 316509700 | Insulation, Oven Bottom |
|
$ 60.25 | |||||
| 59A | 316510001 | Vent Tube, Oven, Upper |
|
- | |||||
| 5A | 5304509869 | Leveling Leg Assy, Metal, Front, (2), Bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 316496201 | Rack, Oven (Replaces: 316496207) |
|
Immediately | $ 103.48 | ||||
| 8A | 316505701 | Base, Bake Element |
|
$ 244.44 | |||||
| 8B | 316506000 | Bracket, Support, Oven Bottom, (2) |
|
$ 4.55 | |||||
| 8C | 316505801 | Support, Element |
|
$ 25.48 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 5.67 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316580265 | Harness, Wiring, Main |
|
- | |||||
| NI | 316303501 | Harness Assembly, Filter, Electrical, W/capacitors |
|
$ 84.91 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black |
|
$ 13.46 | |||||
| NIA | 316580513 | Harness, Wiring, Jumper |
|
- | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIA | 316112005 | Bracket, Anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIB | 316116000 | Screw, Concrete, 1.75", Anti-tip Brkt |
|
$ 12.89 | |||||
| NIC | 316541700 | Template, Anti-tip |
|
- |
