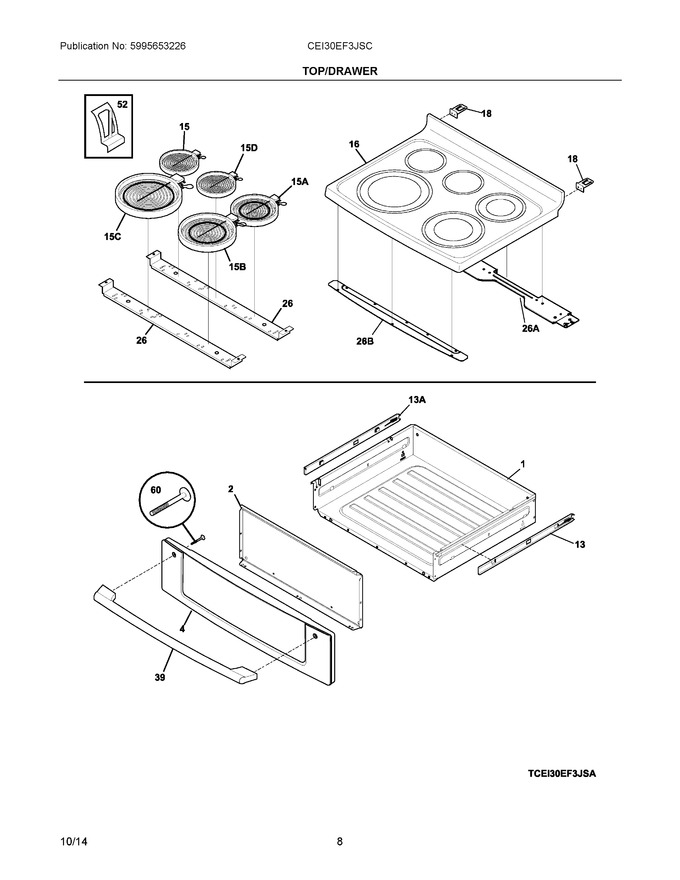

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408903		Drawer, Warmer				$ 111.30
2	316403303		Liner, Drawer				$ 67.79
4	316382700		Panel, Drawer, Stainless				$ 258.67
13	316415000		Glide, Warmer, Inner Rh   (Replaces: 316415002)				$ 58.82
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	316282978		Maintop Assembly, Glass/smoothtop, Black				$ 353.81
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	316427604		Channel, Element Support, (2)		Appelez-nous	-
39	316380802		Handle, Door, Stainless				$ 250.86
52	316461700		Clip, Element Mtg				$ 12.05
60	316439503		Screw, Handle Mtg., #10-24 X 1.000, (2)		Appelez-nous	-
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 58.82
15A	318198952		Element, Surface, Dual, 750/1800w			Immediately	$ 250.90
15B	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15C	316282101		Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant			Immediately	$ 283.03
15D	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)			Immediately	$ 35.77
26A	316352700		Bracket, Chassis Support		Appelez-nous	-
26B	316501501		Bracket, Chassis Support, Front				$ 15.33
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316468101		Cleaner, Smoothtop, W/sponge				$ 9.93
NI	316580453		Harness, Wiring, Surface Units		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
