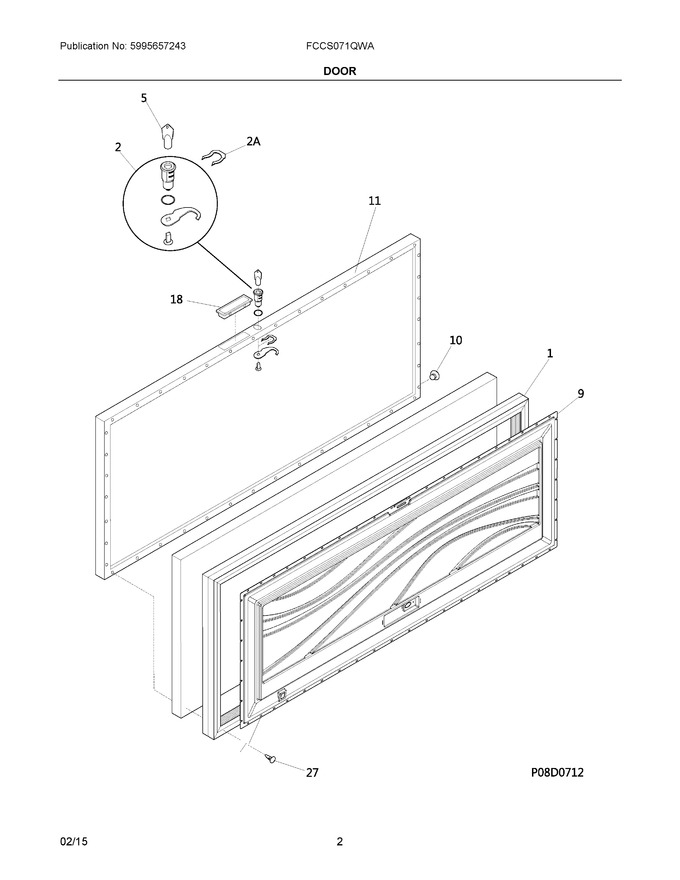

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297400311		Gasket, White		Appelez-nous	-
2	297090100		Lock Assy				$ 21.27
5	297147700		Key, Lock			Immediately	$ 7.57
9	297400003		Panel, Inner		Appelez-nous	-
10	216923001		Plug Button, 1/4", White				$ 9.87
11	297399703		Lid, W/lk Pocket, White		Appelez-nous	-
18	297034202		Handle, Recessed, Chrome, W/gasket				$ 39.43
27	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83
2A	297090900		Clip, Spring				$ 10.85
NI	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
NI	297443402		Insulation		Appelez-nous	-
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NIA	5303212828		Clip, Panel Mtg				$ 16.63
