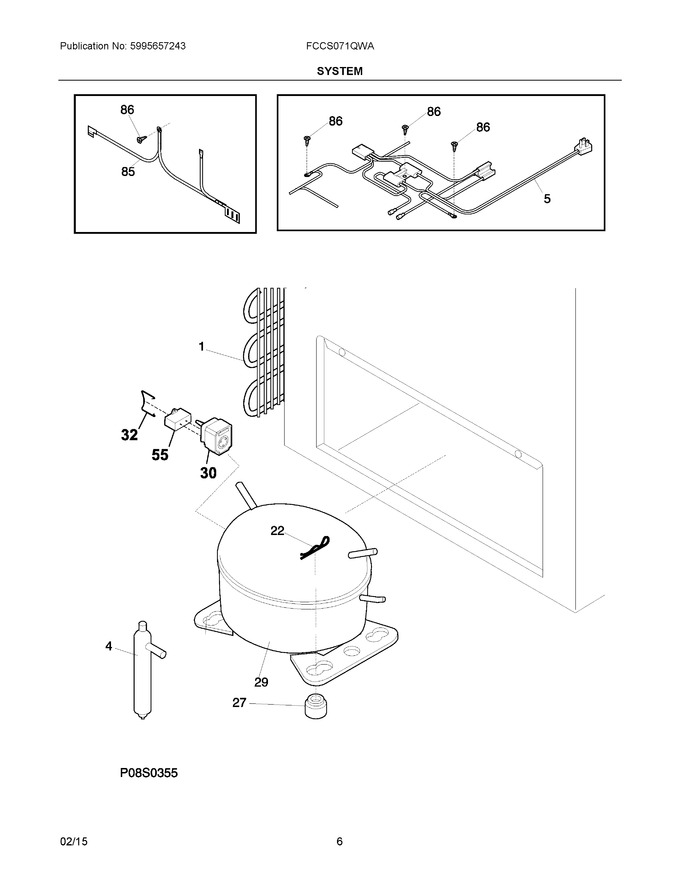

01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303280307 | Condenser |
|
$ 640.71 | |||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396820) |
|
Immediately | $ 31.67 | ||||
| 5 | 297345810 | Harness |
|
$ 80.24 | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 14.41 | |||||
| 29 | 5304507767 | Compressor (Replaces: 297406910) |
|
$ 726.41 | |||||
| 30 | 297259521 | Controller, Compressor (Replaces: 297259511) |
|
$ 68.26 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 17.01 | |||||
| 55 | 297286805 | Capacitor-run |
|
$ 45.55 | |||||
| 85 | 216818300 | Wire-ground |
|
- | |||||
| 86 | 216707801 | Screw, Ph, 8-32 X 1/2, Wiring Harness |
|
- | |||||
| NI | 297398000 | Spacer |
|
- | |||||
| NI | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| NI | 297405100 | Support, Compressor |
|
- |
