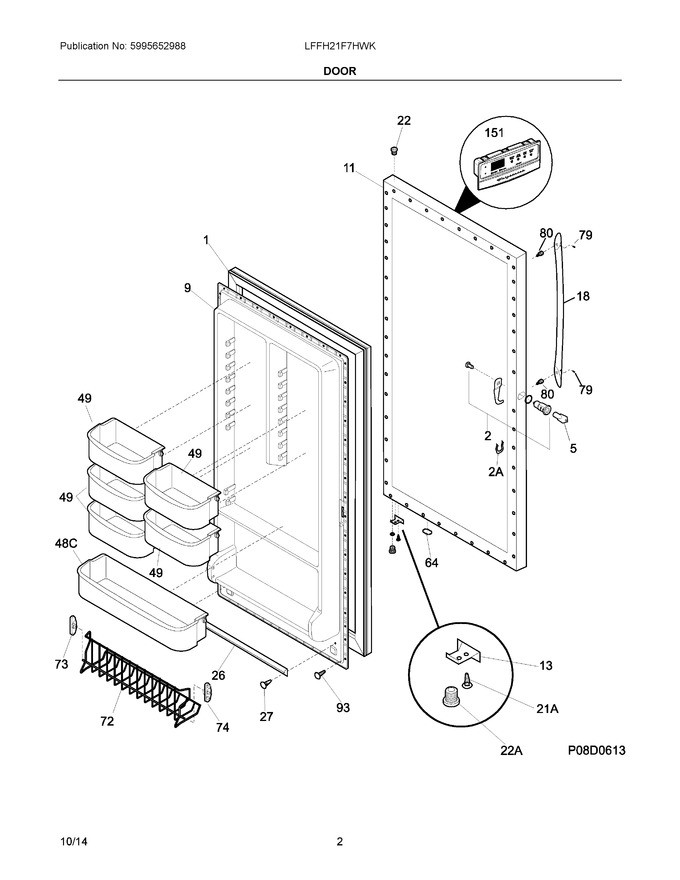

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door, White   (Replaces: 216522362)			Immediately	$ 159.60
2	297318600		Lock Assy				$ 36.87
5	297147700		Key, Lock			Immediately	$ 7.57
9	297185900		Panel-inner Door, Frzr				$ 193.49
11	297316702		Panel-outer Door, White				$ 320.27
13	297257000		Door Stop, Chrome, Rh				$ 16.63
18	297422020		Handle				$ 99.77
22	216970802		Bearing, Hinge W/o'ring, Top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket, Secondary				$ 49.62
27	5304472186		Clip, Panel Mtg				$ 11.57
49	A00299203		Bin-door, 2-liter   (Replaces: 297187204)				$ 80.33
64	216403700		Plug-button, Hole Filler, Door Base				$ 58.12
72	297186701		Shelf, Tilt Out, Wire				$ 74.39
73	216513900		End Cap, Shelf, Lh, Tilt-out				$ 48.86
74	216514000		End Cap, Shelf, Rh, Tilt-out				$ 48.05
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
151	297235200		Control-electronic, Assy, White, 115v   (Replaces: 297366300)			Immediately	$ 338.99
21A	297197500		Screw, Door Stop Mtg, Fh38-16x.750, P Twin				$ 14.46
22A	297006800		Bearing-hinge, Btm, W/o'ring				$ 12.29
2A	297213300		Clip, Spring				$ 10.17
48C	5304510193		Bin-door, Gallon   (Replaces: 297225600)				$ 73.57
64A	297014702		Plug-button, Door Base				$ 9.41
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
NI	240537301		Nut-anchor, Door Hdl Screw				$ 11.34
NIA	297348000		Insert, Threaded, Door, (2)				$ 7.14
