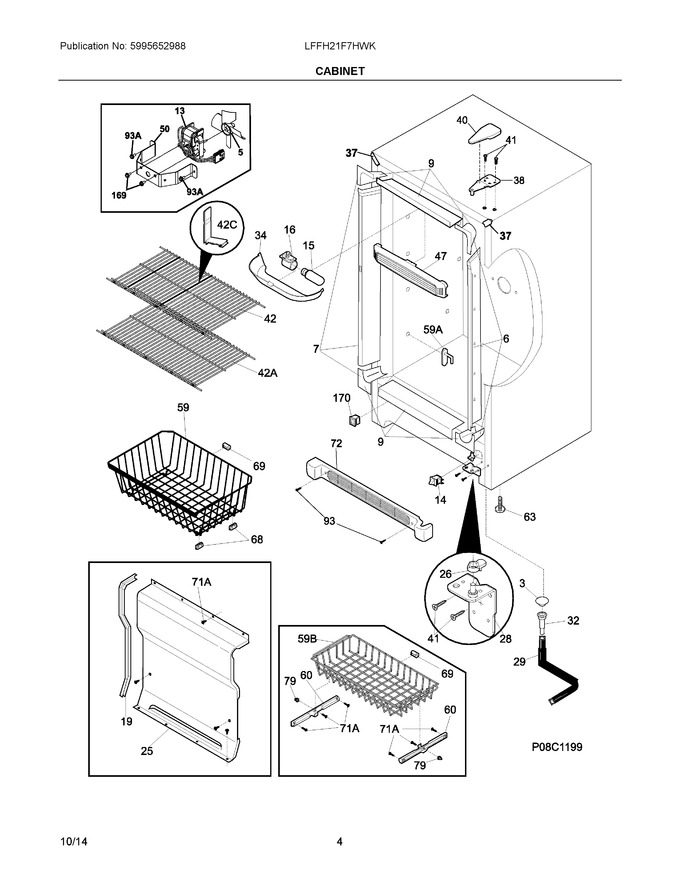

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
7	297201100		Breaker Kit W/corners, Lock Catch				$ 89.57
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light Bulb, Short, Blue Tint, 40w   (Replaces: 297114000)			Immediately	$ 73.06
16	297139500		Socket, Light/lamp				$ 18.08
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099251		Cover-evaporator				$ 109.93
26	216503300		Ramp, Door Closer				$ 8.82
28	297283900		Hinge-bottom, Stepped Pin			Immediately	$ 54.23
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw, Tamper Proof, 1/4-20 X 5/8   (Replaces: 297236200)			Immediately	$ 14.18
42	297367500		Shelf, Wire, 16.69x27.88, White, (3)				$ 104.00
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket, Fan Motor Mount				$ 22.75
59	5304497657		Basket   (Replaces: 297343500)				$ 121.91
60	297013500		Slide, Shelf				$ 38.98
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide-basket				$ 35.25
69	5305878546		Bumper-basket				$ 7.23
72	297198900		Grille/kickplate, 32", White				$ 30.71
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
42A	297367400		Shelf Wh 14.50 X 27.88				$ 101.33
42C	297183702		Divider, Blue, Wire Shelf				$ 13.52
59A	216486500		Stop-basket, (2)				$ 20.58
59B	297343700		Basket				$ 84.63
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297257400		Label, Start Guide				$ 2.98
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	297281200		Instructions, Elect Guide, Precision		Appelez-nous	-
NI	297089316		Energy Guide		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
