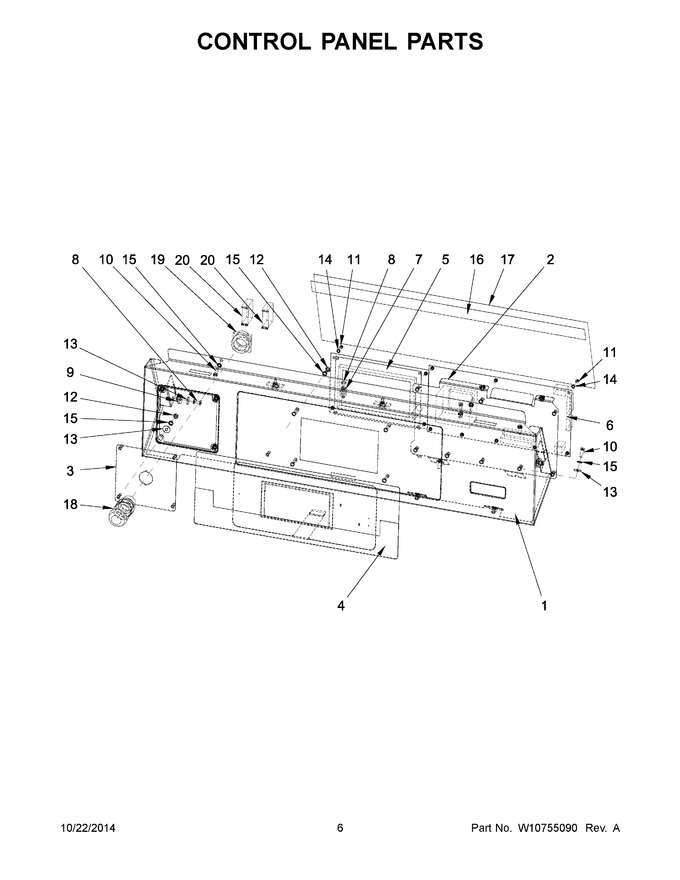

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725454 | Control Panel |
|
- | |||||
| 2 | W10725459 | Control Board Bracket |
|
- | |||||
| 3 | W10725461 | Cover Plate |
|
- | |||||
| 4 | W10725463 | Keypad, Mc7 Fc (pn) |
|
- | |||||
| 5 | W10712233 | Control Board - Cpu |
|
- | |||||
| 6 | W10712234 | Control Board - Power Supply |
|
- | |||||
| 7 | W10711787 | Pin Insertion |
|
- | |||||
| 8 | W10711789 | Rivet W/crank (4x16) |
|
- | |||||
| 9 | W10725468 | Leading Pin |
|
- | |||||
| 10 | W10712243 | Bolt M4x12 |
|
- | |||||
| 11 | 23002869 | Bolt M3x6 |
|
- | |||||
| 12 | 23003666 | Nut M4 |
|
- | |||||
| 13 | 23001545 | Washer M4 |
|
- | |||||
| 14 | 23002865 | Washer, Lock M4 |
|
- | |||||
| 15 | 23002950 | Washer, Lock M4 |
|
- | |||||
| 16 | 23004126 | Double-sided Tape |
|
- | |||||
| 17 | 23002877 | Shield, Rain |
|
- | |||||
| 18 | W10712238 | Knob, Emergency Stop |
|
- | |||||
| 19 | W10712240 | Holder, Emergency Stop |
|
- | |||||
| 20 | W10712241 | Switching Unit |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10712236 | Cable, Cpu - Power Supply |
|
- | |||||
| NI | 23004139 | Emergency Stop Harness (opl) |
|
- |
