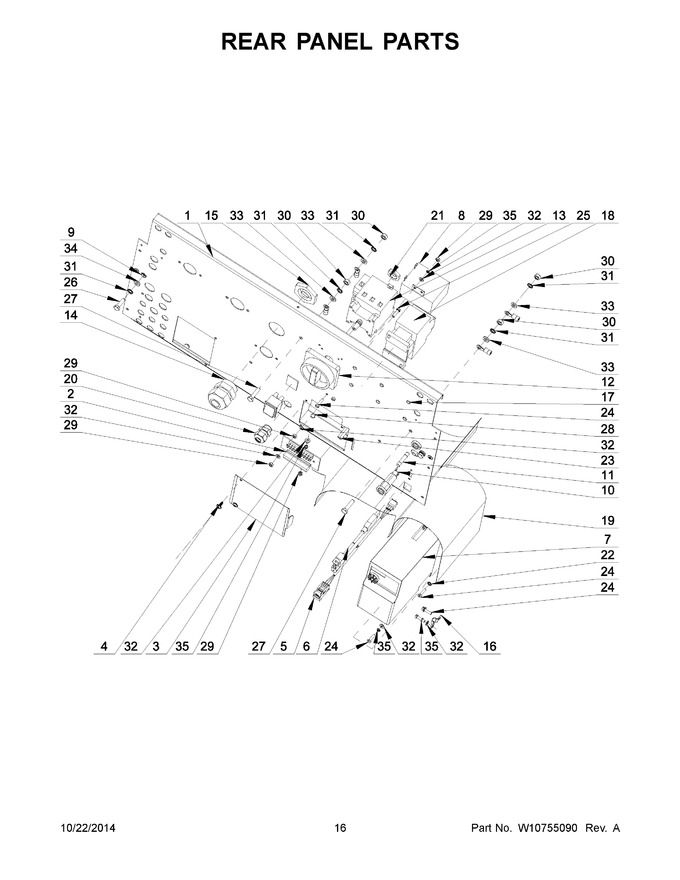

09 - Rear Panel Parts


10 - Drum And Tub Parts


11 - Drive Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725514		Rear Panel - Complete		Appelez-nous	-
2	W10286355		Signal Board Mc5		Appelez-nous	-
3	W10725522		Rear Panel, Lid		Appelez-nous	-
4	W10711800		Screw 4x11		Appelez-nous	-
5	W10713154		Cable, Rs485 Connectors		Appelez-nous	-
6	W10713157		Cable, Usb - Rear Panel Connection		Appelez-nous	-
7	W10415734		Inverter, Frequency		Appelez-nous	-
8	W10725530		Filter		Appelez-nous	-
9	23001575		Nut, Insert M6		Appelez-nous	-
10	23002210		Fuse Holder (6x32mm)		Appelez-nous	-
11	WP22001555		Fuse 1a 6x32   (Replaces: 23003385)			Immediately	$ 27.33
12	23003497		Main Switch Knob		Appelez-nous	-
13	23003500		Main Switch 25a		Appelez-nous	-
14	23004494		Large Strain Relief		Appelez-nous	-
15	23004495		Large Strain Relief Nut		Appelez-nous	-
16	W10713152		Cable Clamp		Appelez-nous	-
17	23002362		Rivet W/crank (4x7)		Appelez-nous	-
18	23003750		Contactor, Frequency Inverter		Appelez-nous	-
19	W10725553		Cover, Motor - Frequency Inverter		Appelez-nous	-
20	23004396		Small Strain Relief M16		Appelez-nous	-
21	23004398		Small Strain Relief Nut M16		Appelez-nous	-
22	23002950		Washer, Lock M4		Appelez-nous	-
23	23002473		Foam Connector Gasket				$ 4.52
24	23002398		Bolt M4x16		Appelez-nous	-
25	23004095		Bolt M4x16		Appelez-nous	-
26	23002462		Bolt M6x20				$ 5.14
27	23002806		Bolt M6x25		Appelez-nous	-
28	23001682		Bolt M4x8		Appelez-nous	-
29	23003666		Nut M4		Appelez-nous	-
30	23002651		Nut M6		Appelez-nous	-
31	23002425		Washer, Lock M6				$ 473.30
32	23002438		Washer M4.3		Appelez-nous	-
33	23003767		Washer M6.4		Appelez-nous	-
34	23002424		Washer M6.4		Appelez-nous	-
35	23002400		Washer M4		Appelez-nous	-
2A	W10665043		Cable, Pump Relay Board To Led Terminal		Appelez-nous	-
7A	W10725529		Cable, Communication		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10725560		Wiring, Main		Appelez-nous	-
NI	W10713163		Kit, Liquid Soap Supply Connection		Appelez-nous	-
