SELECT A DIAGRAM

01 - Cover Sheet

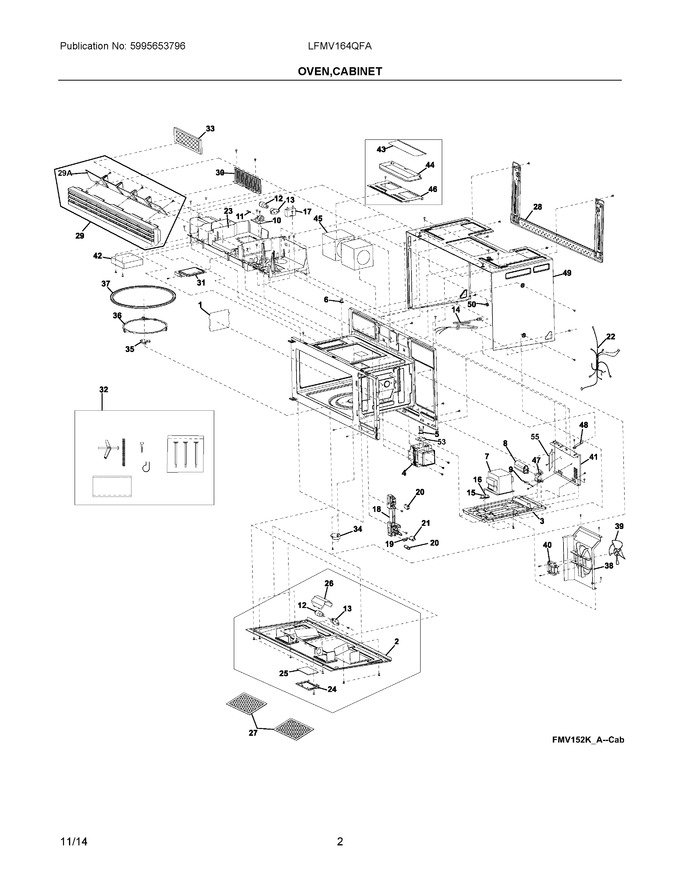

02 - Oven,cabinet


03 - Control Panel,door,misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509435		Cover, Waveguide   (Replaces: 5304464061)			Immediately	$ 13.74
2	5304472476		Cover, Unit Base				$ 257.51
3	5304464063		Base, Transformer, Right Side				$ 103.01
4	5304519335		Magnetron   (Replaces: 5304464072)				$ 354.20
5	5304509469		Thermostat   (Replaces: 5304464073)			Immediately	$ 21.78
6	5304509449		Thermostat, Cutout, Oven Cavity   (Replaces: 5304464074)				$ 21.69
7	5304515184		Transformer, Power, Hv   (Replaces: 5304464075)			Immediately	$ 423.01
8	5304528930		Capacitor, High Voltage   (Replaces: 5304464253)				$ 66.51
9	5304509479		Diode, High Voltage   (Replaces: 5304472472)				$ 28.30
10	5304509452		Filter, Noise, Electronic   (Replaces: 5304472447)			Immediately	$ 75.74
11	5304509451		Fuse   (Replaces: 5304464087)			Immediately	$ 13.01
12	5304461116		Lamp, Light Bulb   (Replaces: 5304464090)			Immediately	$ 44.94
13	5304464091		Lampholder, Socket			Immediately	$ 65.73
14	5304512501		Power Cord, Electric   (Replaces: 5304464092)				$ 106.27
15	5304509474		Thermostat, Cutout, Transformer   (Replaces: 5304464093)			Immediately	$ 20.97
16	5304509475		Thermostat, Cutout, Vent Motor   (Replaces: 5304464094)			Immediately	$ 19.52
17	5304464095		Capacitor, Start				$ 91.67
18	5304509457		Latch Hook   (Replaces: 5304464096)			Immediately	$ 43.79
19	5304509458		Lever, Switch   (Replaces: 5304464097)			Immediately	$ 10.17
20	5304509460		Switch, Interlock   (Replaces: 5304464099)			Immediately	$ 45.27
21	5304509459		Switch, Monitor   (Replaces: 5304464098)			Immediately	$ 30.84
22	5304464100		Wiring Harness, Main				$ 310.43
23	5304464101		Duct, Air				$ 185.59
24	5304464102		Frame, Lens Holder		Appelez-nous	-
25	5304464103		Lens, Cooktop Lamp, Glass				$ 39.53
26	5304464104		Cover, Lamp				$ 59.27
27	5304517871		Filter, Grease, 5" X 7 1/2   (Replaces: 5304464105)			Immediately	$ 26.91
28	5304520948		Plate, Mounting, Rear   (Replaces: 5304464255)				$ 106.70
29	5304537786		Grille, Exhaust, Stainless   (Replaces: 5304499545)		Appelez-nous	-
30	5304464256		Cover, Control Shield, Right				$ 64.16
31	5304464111		Cover, Lamp, Oven Cavity		Appelez-nous	-
32	5304503192		Mounting Kit, With Templates   (Replaces: 5304492620)				$ 114.26
33	FRPAMRAF		Filter, Charcoal, 2" X 10   (Replaces: 5304464577)			Immediately	$ 37.86
34	5304509440		Motor, Turntable   (Replaces: 5304464113)				$ 118.13
35	5304509622		Coupler, Turntable/motor   (Replaces: 5304472494)				$ 21.02
36	5304509438		Support, Turntable Ring   (Replaces: 5304464115)				$ 52.20
37	5304509621		Turntable, Tray, Glass   (Replaces: 5304464116)				$ 154.61
38	5304464117		Duct, Cooling Fan				$ 63.53
39	5304509473		Fan Blade, Cooling Fan   (Replaces: 5304464257)				$ 15.47
40	5304464118		Motor, Cooling Fan				$ 193.40
41	5304472451		Duct, Hood Intake, Right Side		Appelez-nous	-
42	5304472452		Vent, Air Outlet				$ 105.81
43	5304509486		Damper, Door, Exhaust Adapter   (Replaces: 5304464119)			Immediately	$ 27.73
44	5304509485		Frame, Damper Housing, Exhaust Adapter   (Replaces: 5304464120)			Immediately	$ 25.32
45	5304491613		Motor, Hood/vent Fan   (Replaces: 5304464121)				$ 427.54
46	5304472453		Cover, Vent Motor				$ 167.95
47	5304464123		Retainer, Capacitor Strap		Appelez-nous	-
48	5304464124		Spacer		Appelez-nous	-
49	5304472455		Cabinet, Outer Casing, Black		Appelez-nous	-
50	5304509436		Mounting Nut Kit   (Replaces: 5304464598)			Immediately	$ 14.71
53	5304472439		Bracket, Thermostat				$ 18.43
55	5304472454		Vent, Air, Magnetron				$ 62.79
29A	5304472493		Louver, Vent   (Replaces: 5304472495)				$ 322.29
NI	5304472496		Screw Kit, Black				$ 71.56

    View Diagram in Separate Window       Print Part List
