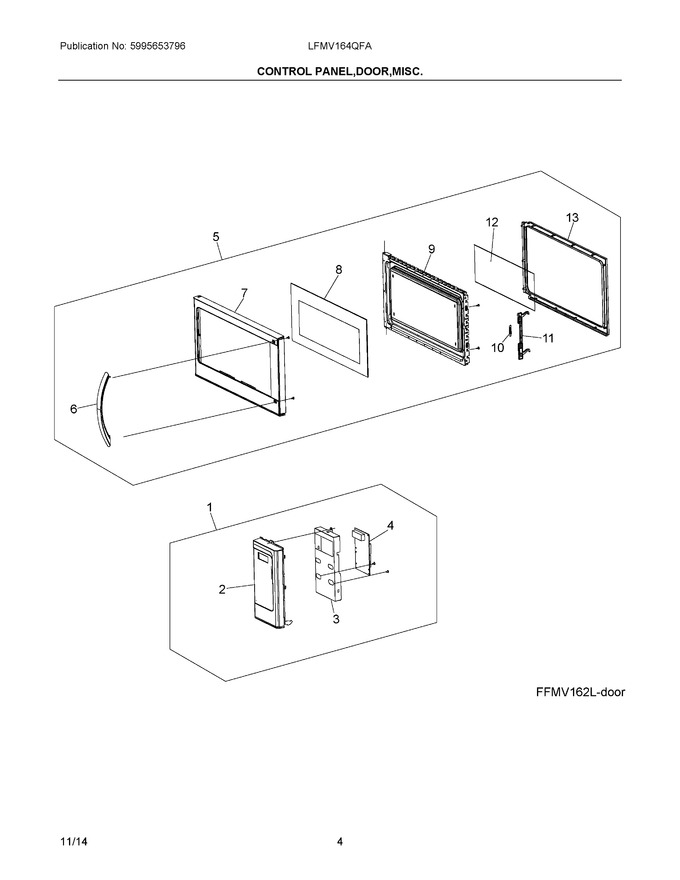

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537783 | Control Assembly, Black/stnls (Replaces: 5304499541) |
|
- | |||||
| 2 | 5304499542 | Control Panel, W/membrane, Ss |
|
- | |||||
| 3 | 5304464065 | Panel, Control Mount, Bracket |
|
$ 68.04 | |||||
| 4 | 5304477390 | Control Board, Printed Circuit |
|
Immediately | $ 309.73 | ||||
| 5 | 5304499543 | Door Assembly, Stainless |
|
- | |||||
| 6 | 5304538972 | Handle Assembly, Door, Stainless (Replaces: 5304477401) |
|
$ 56.96 | |||||
| 7 | 5304499544 | Panel, Outer Door, Stainless Steel |
|
- | |||||
| 8 | 5304464067 | Panel, Glass, Black, Outer Door |
|
Immediately | $ 138.09 | ||||
| 9 | 5304472444 | Panel, Inner Door, Black |
|
$ 280.49 | |||||
| 10 | 5304521953 | Spring, Door Latch (Replaces: 5304464069) |
|
$ 7.23 | |||||
| 11 | 4056021605 | Latch, Door (Replaces: 5304477389) |
|
Immediately | $ 3.69 | ||||
| 12 | 5304474405 | Seal, Door, Mylar Film |
|
$ 18.44 | |||||
| 13 | 5304509640 | Choke Cover, Inner Door (Replaces: 5304464071) |
|
$ 50.61 |
