01 - Cover Sheet

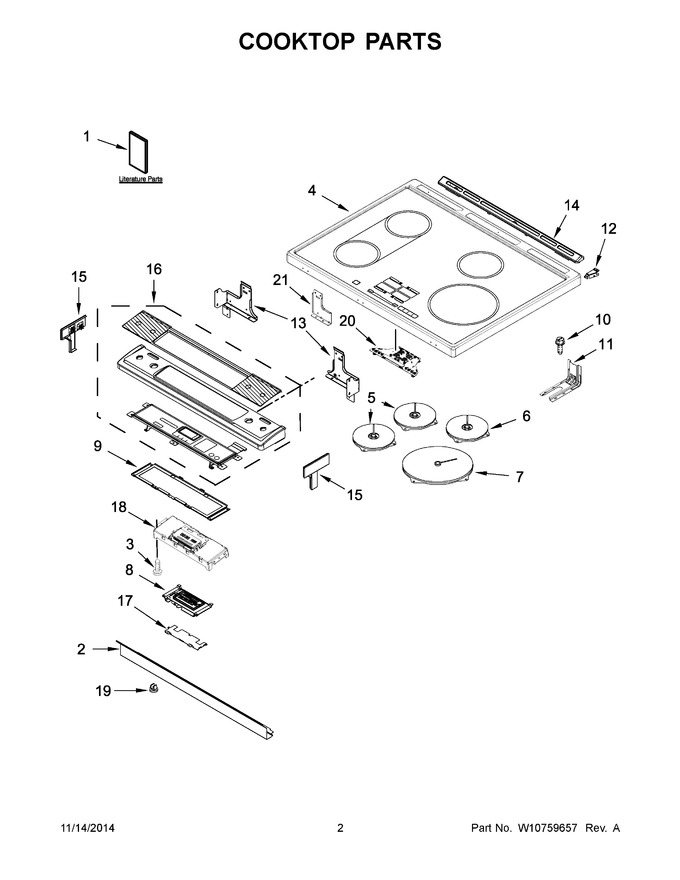

02 - Cooktop Parts
03 - Interior Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10665255 | Installation Instructions |
|
- | |||||
| 2 | W10565662 | Bracket, Mounting (stainless) |
|
$ 178.74 | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 4 | W10751485 | Cooktop (black) (Replaces: W10536318) |
|
$ 854.86 | |||||
| 5 | W11672688 | Element (left Front And Left Rear) (Replaces: W10636723) |
|
Immediately | $ 149.26 | ||||
| 6 | WPW10410580 | Element (right Rear) (Replaces: W10410580) |
|
$ 219.30 | |||||
| 7 | WPW10410578 | Element (right Front) (Replaces: W10410578) |
|
$ 277.41 | |||||
| 8 | WPW10603095 | Assembly, Display (Replaces: W10603095) |
|
Immediately | $ 267.98 | ||||
| 9 | W10557780 | Bracket , Control |
|
$ 31.44 | |||||
| 10 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 11 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 63.54 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 25.76 | |||||
| 14 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 121.73 | ||||
| 15 | W10557751 | Endcap (stainless (left)) |
|
$ 144.73 | |||||
| 16 | W11043339 | Console, Panel (stainless) (Replaces: W10676653) |
|
$ 703.48 | |||||
| 17 | W10558372 | Bracket, Control |
|
$ 21.51 | |||||
| 18 | W11100726 | Control, Mrc2 (Replaces: W10711462) |
|
Immediately | $ 335.34 | ||||
| 19 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.28 | ||||
| 20 | W11677629 | Assembly, Induction Module (Replaces: W10502919) |
|
Immediately | $ 476.39 | ||||
| 21 | W10598048 | Bracket, Console (center) |
|
$ 22.05 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 67.37 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 25.76 | |||||
| 15A | W10557754 | Endcap (stainless (right)) |
|
$ 144.73 | |||||
| 1A | W10665267 | Use And Care Guide |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1G | W10665236 | Wiring Diagram |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10740205 | Harness, Main |
|
$ 164.09 | |||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 203.09 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 48.02 | ||||
| NI | W10580316 | Harness, Bake Drawer |
|
Immediately | $ 159.17 |
