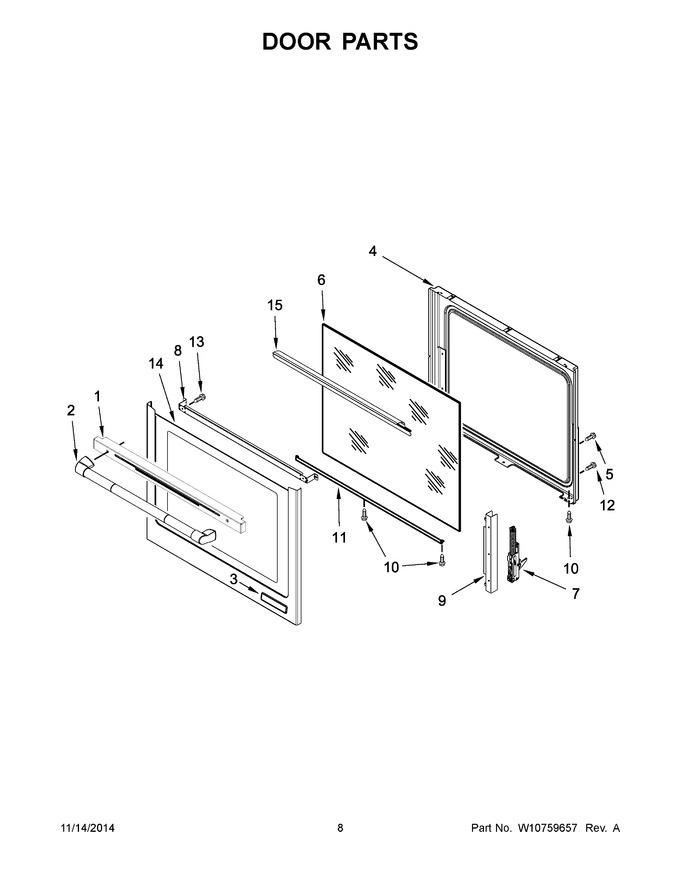

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 121.73 | ||||
| 2 | W11234410 | Handle, Door (stainless) (Replaces: W10483386) |
|
$ 203.55 | |||||
| 3 | WPW10159578 | Badge (stainless) (Replaces: W10159578) |
|
Immediately | $ 75.89 | ||||
| 4 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 329.70 | |||||
| 7 | W11168370 | Hinge, Slow Close (Replaces: W10701152) |
|
Immediately | $ 94.75 | ||||
| 8 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 34.22 | ||||
| 9 | W10541883 | Hinge, Support Rail |
|
$ 38.48 | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 11 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 13 | W10530626 | Screw |
|
$ 14.36 | |||||
| 14 | W10634269 | Assembly, Outer Door Glass (stainless) |
|
$ 313.15 | |||||
| 15 | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 105.44 |
