SELECT A DIAGRAM

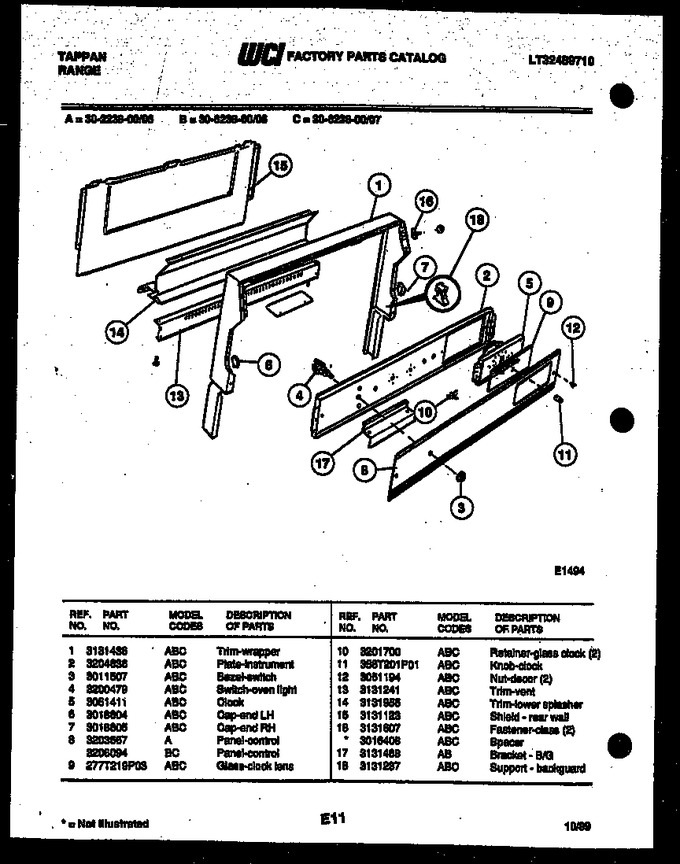

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131436		Trim Wrapper		Appelez-nous	-
2	3204636		Plate-instrument		Appelez-nous	-
3	3011507		Bezel-switch		Appelez-nous	-
4	3200479		Switch-oven Light		Appelez-nous	-
5	3051411		Clock		Appelez-nous	-
6	3018604		Cap-end Lh		Appelez-nous	-
7	3018605		Cap-end Rh		Appelez-nous	-
8	3203567		Panel Control		Appelez-nous	-
9	277T219P03		Glass-clock Lens		Appelez-nous	-
10	3201700		Retainer-glass Clock (2)		Appelez-nous	-
11	358T201P01		Knob, Clock		Appelez-nous	-
12	3051194		Nut - Decor (2)		Appelez-nous	-
13	3131241		Trim-vent		Appelez-nous	-
14	3131955		Trim-lower Splasher		Appelez-nous	-
15	3131123		Shield, Rear Wall		Appelez-nous	-
16	3131607		Fastener-class (2)		Appelez-nous	-
17	3131468		Bracket B/g		Appelez-nous	-
18	3131237		Support Backguard		Appelez-nous	-
16A	3016408		Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
