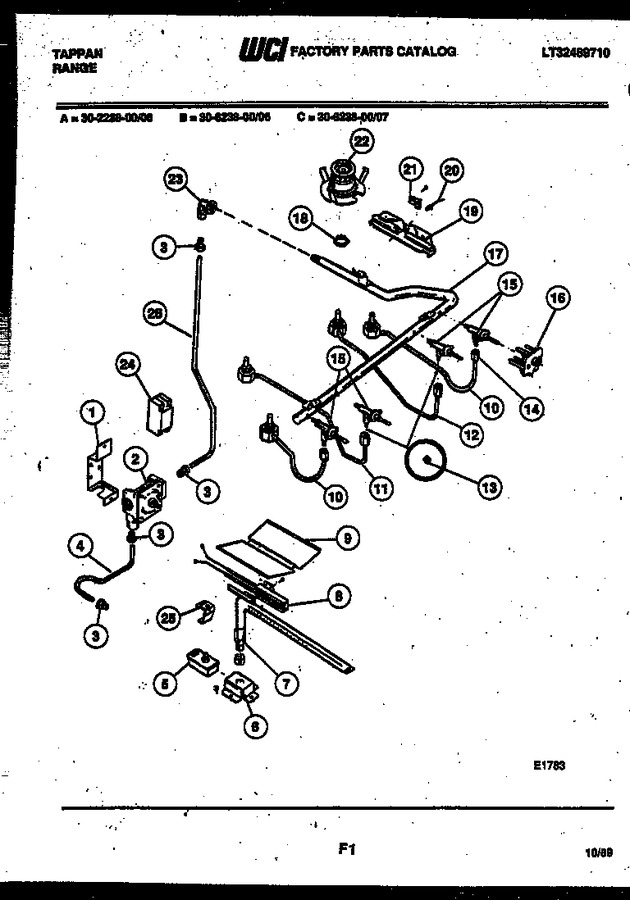

06 - Burner, Manifold And Gas Control


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131110		Brkt Regul		Appelez-nous	-
2	166T011P01		Control - Regul		Appelez-nous	-
3	3131261		Fitting Loxit (4)		Appelez-nous	-
4	3131448		Tube - Valve To Regul		Appelez-nous	-
5	3131449		Valve - Safety		Appelez-nous	-
6	3131438		Brkt.-valve		Appelez-nous	-
7	3131439		Burner-oven				$ 204.59
8	3131300		Igniter, Oven		Appelez-nous	-
9	3131327		Baffle, Oven		Appelez-nous	-
10	3131970		Burner Tube-front (2)		Appelez-nous	-
11	3011570		Burner-tube (lr)		Appelez-nous	-
12	3011569		Burner-tube (rr)		Appelez-nous	-
13	3012358		Ferrule (4)		Appelez-nous	-
14	3131148		Nut-compression		Appelez-nous	-
15	3017542		Valve-top Burners (4)		Appelez-nous	-
16	695T225P02		Switch Igniter		Appelez-nous	-
17	3201106		Manifold - Pipe		Appelez-nous	-
18	3013279		Nut, Special				$ 2.34
19	136T355W03		Channel, Flash Tube		Appelez-nous	-
20	3131105		Igniter, Top Burner		Appelez-nous	-
21	3018617		Retainer, Igniter		Appelez-nous	-
22	3011567		Burner Top Assy.		Appelez-nous	-
23	3012204		Elbow		Appelez-nous	-
24	3200669		Spark Module		Appelez-nous	-
25	3018603		Bracket, Oven Burner Support		Appelez-nous	-
26	3014477		Tube - Alum (regul. To Elbow)		Appelez-nous	-
*39726	3051420		Pop Rivet		Appelez-nous	-
