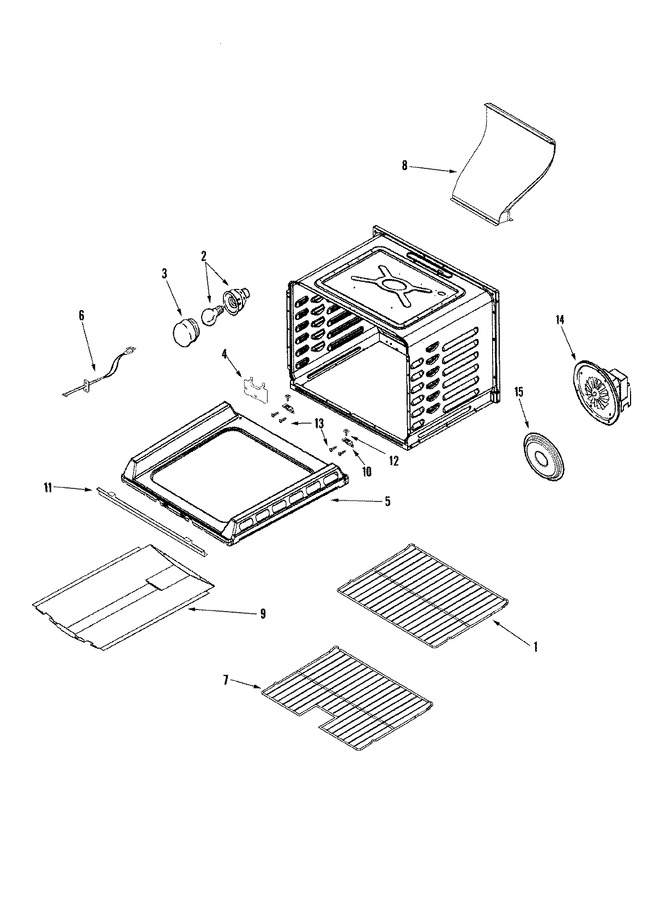

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74008763 | Rack, Oven (Replaces: 74008763) | 10 |
|
$ 192.14 | ||||
| 2 | WP74011278 | Light, Oven Asy. (Replaces: 74011278) | 10 |
|
$ 101.56 | ||||
| 3 | 74011299 | Lens, Light Bulb | 10 |
|
- | ||||
| 4 | 4005F421-45 | Cover,igniter | 10 |
|
- | ||||
| 5 | WPW10211368 | Bottom, Oven (Replaces: 74008741) | 10 |
|
Immediately | $ 287.07 | |||
| 6 | 12001655 | Sensor, Oven (short) (Replaces: 74004944) | 10 |
|
Immediately | $ 41.01 | |||
| 7 | 74009045 | Rack, Easy | 10 |
|
- | ||||
| 8 | 74008817 | Vent, Oven | 10 |
|
- | ||||
| 9 | 74008846 | Baffle, Bake Burner | 10 |
|
- | ||||
| 10 | 74008694 | Support, Oven Bottom (rear) | 10 |
|
- | ||||
| 11 | 74008695 | Support, Oven Bottom (front) | 10 |
|
- | ||||
| 12 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74011174 | Fan Asy., Convect | 10 |
|
$ 152.59 | ||||
| 15 | 74005783 | Cover, Convect | 10 |
|
- |
