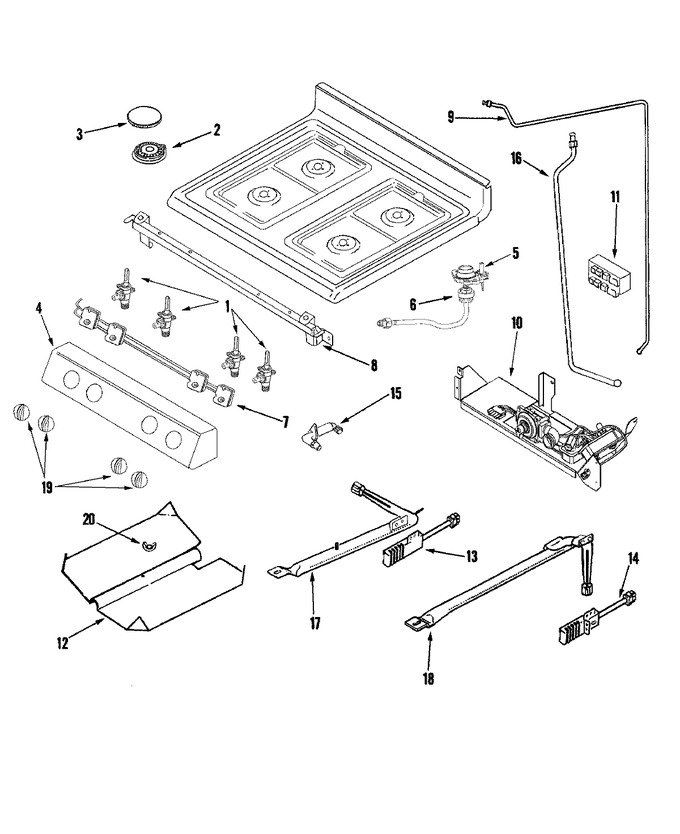

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010752		Valve, 12k (copreci)	10	Appelez-nous	-
1	74010751		Valve, 16k (copreci)	10			$ 242.95
1	WP7502P499-60		Valve, Burner (5k Copreci)   (Replaces: 74010629)	10			$ 234.74
1	WP74009857		Screw, T-stat/valve Mtg   (Replaces: 74009857)	10			$ 4.95
2	WPW10406878		Base, Burner (16k)   (Replaces: 74007413)	10		Immediately	$ 92.12
2	W11772394		Screw, Self Tapping   (Replaces: 74007410)	10		Immediately	$ 10.94
2	WPW10406797		Base, Burner   (Replaces: 74007698)	10			$ 79.64
2	WPW10406243		Base, Burner (5k)   (Replaces: 74007411)	10		Immediately	$ 33.50
3	WP74007925		Cap, Burner (med-blk)   (Replaces: 74007925)	10			$ 86.81
3	WP3191898		Cap, Burner (smr-blk)   (Replaces: 74007416)	10			$ 60.86
3	74007414		Cap, Burner (lrg-blk)	10	Appelez-nous	-
4	74011412		Panel, Manifold (stl)	10	Appelez-nous	-
4	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	10		Immediately	$ 12.65
5	WP74009958		Ignitor, Top Burner Assy.   (Replaces: 74009958)	10		Immediately	$ 28.85
6	74008841		Orifice Holder/tube Asy (lr)	10	Appelez-nous	-
6	74009040		Orifice Holder/tube Asy (rf)	10			$ 30.47
6	74008840		Orifice Holder/tube Asy (rr)	10	Appelez-nous	-
6	74008838		Orifice Holder/tube Asy (lf)	10	Appelez-nous	-
7	74009655		Harness, Spark Ignition	10			$ 89.47
8	74008809		Pipe, Manifold	10	Appelez-nous	-
9	71003231		Screw, Valve	10	Appelez-nous	-
9	74008829		Tubing, Supply	10	Appelez-nous	-
10	74010218		Valve/regulator Assembly	10	Appelez-nous	-
11	74008821		Module, Spark	10			$ 212.63
11	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	10		Immediately	$ 12.62
12	3601P336-45		Baffle, Broil Burner   (Replaces: 74008819)	10			$ 194.65
13	74007498		Igniter, Oven	10		Immediately	$ 78.40
13	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
14	WP7432P136-60		Ignitor, Fs Bake/broil   (Replaces: 74008064)	10		Immediately	$ 84.62
14	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
15	74008818		Fitting, Broil Burner	10			$ 73.73
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	74008830		Tubing, Broil	10			$ 74.95
17	74008820		Burner, Broil	10	Appelez-nous	-
18	31945701		Burner, Bake	10	Appelez-nous	-
19	74008850		Knob, Burner (blk)	10			$ 19.70
20	7103P030-60		Nut, Wing	10			$ 6.37
