SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

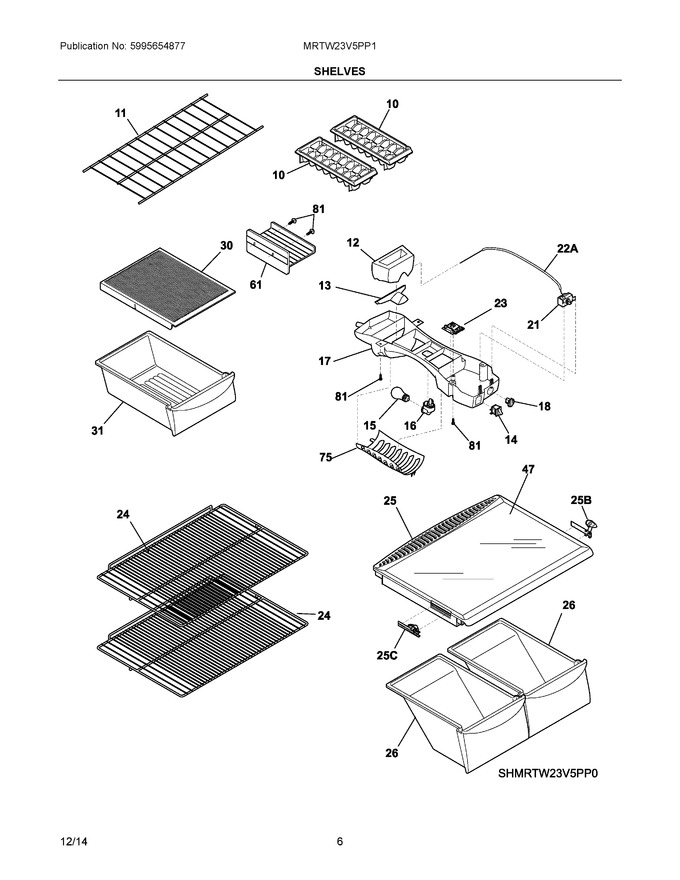

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray, Ice Cube, Plastic			Immediately	$ 6.07
11	240358006		Shelf, Freezer, Full-width, Wire				$ 45.41
12	240545901		Diffuser-air, Top				$ 70.16
13	240362601		Diffuser, Air, Bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp				$ 70.88
15	218814402		Light Bulb				$ 55.36
16	241559801		Socket-light/lamp   (Replaces: 240433702)				$ 72.68
17	240368105		Box-control, Front   (Replaces: 240368103)			Immediately	$ 130.44
18	240360801		Knob, Temp Control				$ 43.95
21	5304458021		Control, Temperature		Appelez-nous	-
23	242011004		Control-defrost, Adaptive Timer, 220/240 V, Pc Board		Appelez-nous	-
24	240360904		Shelf, Sliding, Wire				$ 72.45
25	240364790		Cover-crisper Pan				$ 135.66
26	240343803		Pan, Crisper, (2)			Immediately	$ 171.91
30	240361801		Cover, Meat Pan Hanger, Drop Through		Appelez-nous	-
31	240530811		Pan-meat, W/o Graphics, Clear   (Replaces: 240530803)			Immediately	$ 135.77
47	240350609		Insert-pan Cover, Glass			Immediately	$ 162.30
61	215781501		Shelf, Ice Tray Mount, Wire				$ 136.19
75	240412701		Shield, Light				$ 16.30
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White   (Replaces: 240468201)				$ 9.10
25B	241613501		Control-humidity, Rh			Immediately	$ 12.05
25C	241613502		Control-humidity, Lh				$ 47.78
NIA	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 17.01
NIA	241705801		Spacer-shelf				$ 7.09
NIA	242081702		Wiring Harness, Control Box		Appelez-nous	-
NIB	5303299664		Spacer, Shelf				$ 24.10

    View Diagram in Separate Window       Print Part List
