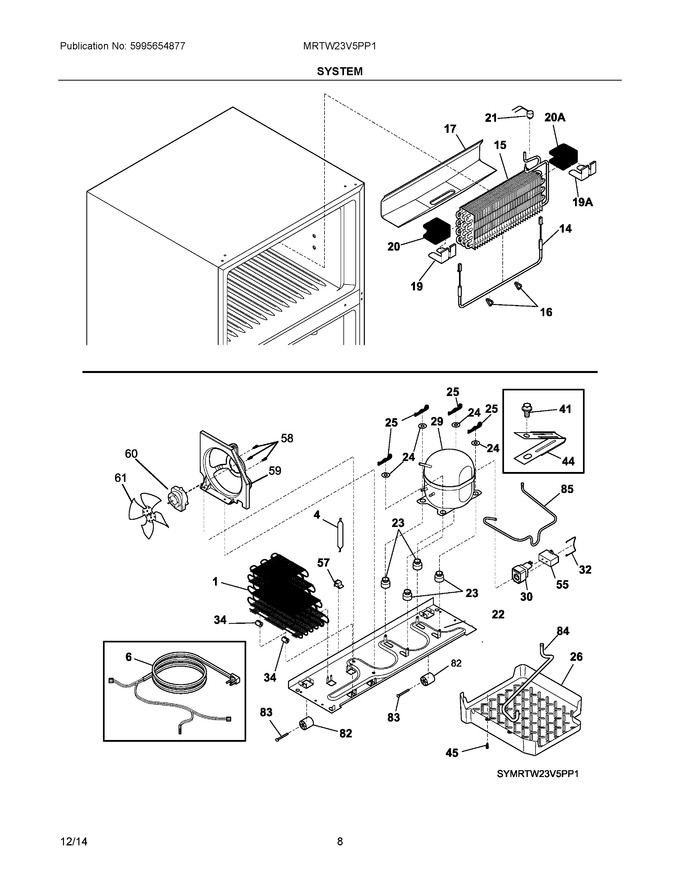

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785405		Condenser, Dynamic				$ 150.26
4	5303305677		Dryer-filter   (Replaces: 242047603)			Immediately	$ 31.67
6	241723307		Cord-service, Britain		Appelez-nous	-
14	240356218		Defrost Heater, 220 V		Appelez-nous	-
15	5303918274		Evaporator Kit			Immediately	$ 423.67
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
17	241801301		Trough-drain				$ 64.46
19	242320401		Shield, Heat, Evap Block				$ 67.49
20	5304527429		Block, Evaporator, Rh   (Replaces: 242238401)				$ 11.22
22	241665504		Base-compressor				$ 80.09
23	218513300		Grommet-compr Mtg, (4)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	241697603		Pan-defrost   (Replaces: 241697602)				$ 79.22
29	240550927		Compressor		Appelez-nous	-
30	241707714		Starter-ptc				$ 59.54
32	241809001		Clamp, Elec Cont Mtg, Compressor		Appelez-nous	-
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
55	218909908		Capacitor, Run				$ 177.19
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240555002		Screw, Hex Washer Head, 8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
59	241935603		Shroud, Cond Fan Motor		Appelez-nous	-
60	242018402		Motor-condenser Fan, 220-240v		Appelez-nous	-
61	240524102		Fan Blade, Condenser Fan			Immediately	$ 39.43
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 51.57
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
84	240597301		Tube-drain, Lower		Appelez-nous	-
85	241856901		Tube-connector, Suction				$ 78.11
20A	5304527430		Block, Evaporator, Lh   (Replaces: 242238301)				$ 11.48
NI	5303918330		Heat Exchanger Kit, Suction Line   (Replaces: 5303918210)				$ 335.10
NI	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 19.13
NIA	240346701		Tape-foam Seal, Shroud				$ 29.77
NIA	241735901		Bracket Assembly, Receptacle, Service Cord		Appelez-nous	-
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NIB	218709101		Screw, Hex Head, 10-32 X 0.500				$ 6.38
NIB	240359403		Screw-fan Shroud, (2)				$ 3.79
NIB	241832601		Harness-wiring, Freezer		Appelez-nous	-
NIC	242020001		Harness, Wiring, Machine Compt		Appelez-nous	-
NID	242081702		Wiring Harness, Control Box		Appelez-nous	-
