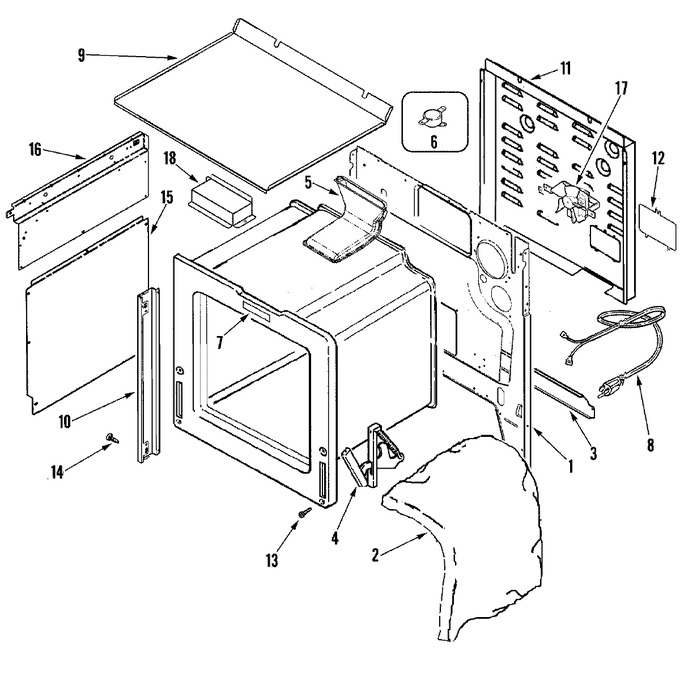

01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010949 | Back, Main | 10 |
|
- | ||||
| 2 | 74010887 | Insulation, Wrapper | 10 |
|
- | ||||
| 3 | 74010815 | Extension, Main Back | 10 |
|
- | ||||
| 4 | WP74011140 | Hinge, Oven Door (Replaces: 74011140) | 10 |
|
Immediately | $ 120.21 | |||
| 5 | 74010959 | Vent | 10 |
|
- | ||||
| 6 | 7450P030-60 | Switch, Limit (Replaces: 74010904) | 10 |
|
Immediately | $ 87.26 | |||
| 7 | 74003406 | Plug, Lock Slot | 10 |
|
- | ||||
| 8 | 74004295 | Cord, Power | 10 |
|
- | ||||
| 9 | 74010906 | Bottom, Burner Box | 10 |
|
- | ||||
| 10 | 74010833 | Trim, Side (bsq) | 10 |
|
- | ||||
| 11 | 74006096 | Cover, Wire (rear) | 10 |
|
- | ||||
| 12 | 74005264 | Cover, Terminal Block | 10 |
|
- | ||||
| 13 | WP4159193 | Screw (Replaces: 7101P112-60) | 10 |
|
$ 4.29 | ||||
| 14 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 15 | 74010905 | Sheild, Lower Side | 10 |
|
$ 53.29 | ||||
| 16 | 74010822 | Panel, Shield (rt) | 10 |
|
- | ||||
| 16 | 74010821 | Panel, Shield (lt) | 10 |
|
- | ||||
| 17 | WPW10586440 | Fan, Cooling (Replaces: 74010823) | 10 |
|
$ 286.74 | ||||
| 18 | 74010845 | Cover, Door Latch | 10 |
|
- |
