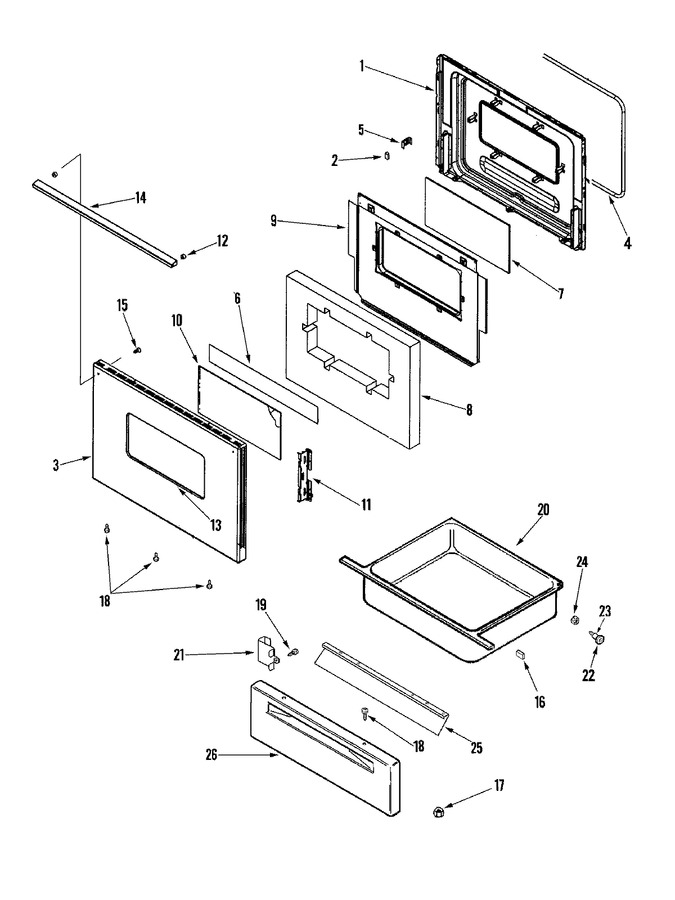

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009280		Lining, Door	10	Appelez-nous	-
2	WP74004224		Tape, Single Sided (wht)   (Replaces: 74004224)	10			$ 10.53
3	74011026		Panel, Door (bsq)	10	Appelez-nous	-
4	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
5	7112P034-60		Clip, Door	10	Appelez-nous	-
6	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
7	74009281		Glass, Door Inner	10	Appelez-nous	-
8	74001842		Insulation, Door	10	Appelez-nous	-
9	74009528		Baffle, Oven Door	10	Appelez-nous	-
10	74001072		Glass, Outer Door (blk)	10	Appelez-nous	-
11	74003048		Retainer, Glass	10	Appelez-nous	-
12	WP74005058		Spacer, Handle (bsq)   (Replaces: 74005058)	10			$ 7.05
13	7201P017-60		Gasket, Window	10			$ 52.69
14	74007089		Handle, Door (bsq)	10	Appelez-nous	-
15	WP3387230		Screw   (Replaces: 74002483)	10		Immediately	$ 7.69
16	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
17	74005230		Nut, Lock (8-32)	10			$ 12.02
18	WP74009541		Screw (bsq)   (Replaces: 74009541)	10			$ 6.26
19	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
20	74008333		Drawer, Storage	10	Appelez-nous	-
21	74010896		Bracket, Drawer	10	Appelez-nous	-
22	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
23	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
24	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
25	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
26	74004966		Panel, Drawer (bsq)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
