SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

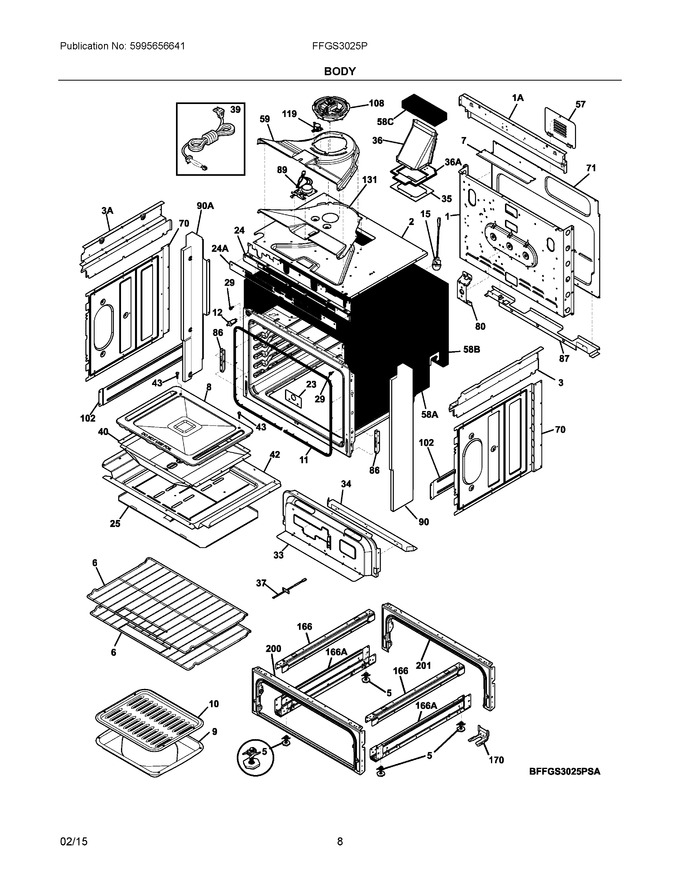

04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017302		Panel, Main Back		Appelez-nous	-
2	139078201		Shield, Insulation, Top		Appelez-nous	-
3	318225230		Panel, Bodyside, Upper Rh		Appelez-nous	-
5	318175510		Screw, Leveling, W/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	139011800		Rack, Oven, W/handle				$ 128.00
8	139005001		Panel, Oven Bottom		Appelez-nous	-
9	318138801		Pan, Broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert, Broiler Panoptional Access0ry		Appelez-nous	-
11	807545502		Seal, Oven Door, Gray				$ 140.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
23	139004500		Cover, Broil Opening		Appelez-nous	-
24	139074901		Frame, Vent Trim, Black		Appelez-nous	-
25	318291900		Bracket, Shield, Lower				$ 94.27
29	316517600		Spacer, Oven Door				$ 12.05
33	318287800		Panel, Valve Mtg.		Appelez-nous	-
34	318289401		Panel, Valve Filler		Appelez-nous	-
35	318291300		Seal, Flue Cavity		Appelez-nous	-
36	139004402		Box, Flue Assembly		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
39	5304534377		Cord, Electric Power   (Replaces: 807108202)				$ 26.85
40	139004700		Box, Oven Burner				$ 109.85
42	139004800		Shield, Heat, Lower				$ 127.58
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
57	316283600		Cover, Access				$ 12.50
59	139078002		Duct, Cooling Fan, Top   (Replaces: 139078000)				$ 78.67
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield, Rear Wall, Lower		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	318260624		Bracket, Cable Mtg.		Appelez-nous	-
89	5304528836		Motor, Latch Assembly   (Replaces: 139078300)			Immediately	$ 76.34
90	5304511889		Panel, Filler, Black, Rh   (Replaces: 318296904)				$ 74.42
102	139004100		Panel, Reinforcement, (2)				$ 20.89
108	318575612		Motor, Cooling Fan			Immediately	$ 196.61
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
131	139078102		Duct, Cooling Fan, Bottom   (Replaces: 139078100)				$ 64.49
166	318298410		Bracket, Base Support, (2)				$ 75.83
170	5304486410		Kit, Anti Tip, W/brkt & Instru				$ 158.50
200	318335600		Frame & Wheel Assembly, Black				$ 133.82
201	318298233		Frame, Drawer, Black   (Replaces: 318298230)				$ 45.36
166A	318298403		Bracket, Base Support, Lower, (2)		Appelez-nous	-
1A	139004600		Panel, Main Back, Upper				$ 67.62
24A	139075001		Cover, Vent Trim, Black				$ 60.52
36A	139008301		Support, Panel, Flue		Appelez-nous	-
3A	318225231		Panel, Bodyside, Upper Lh		Appelez-nous	-
58A	139010900		Insulation, Wrapper, Top & Sides				$ 97.70
58B	139011000		Insulation, Oven Back		Appelez-nous	-
58C	318594402		Insulation, Flue   (Replaces: 318594401)				$ 245.64
90A	5304511890		Panel, Filler, Black, Lh   (Replaces: 318296905)				$ 81.14
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	5304497401		Harness, Wiring, Main		Appelez-nous	-
NI	808041201		Harness, Wiring, Oven Ignitors				$ 51.57
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	318579001		Bracket, Wire				$ 11.08
NIA	318531701		Spacer				$ 12.05
NIB	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67

    View Diagram in Separate Window       Print Part List
