SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body

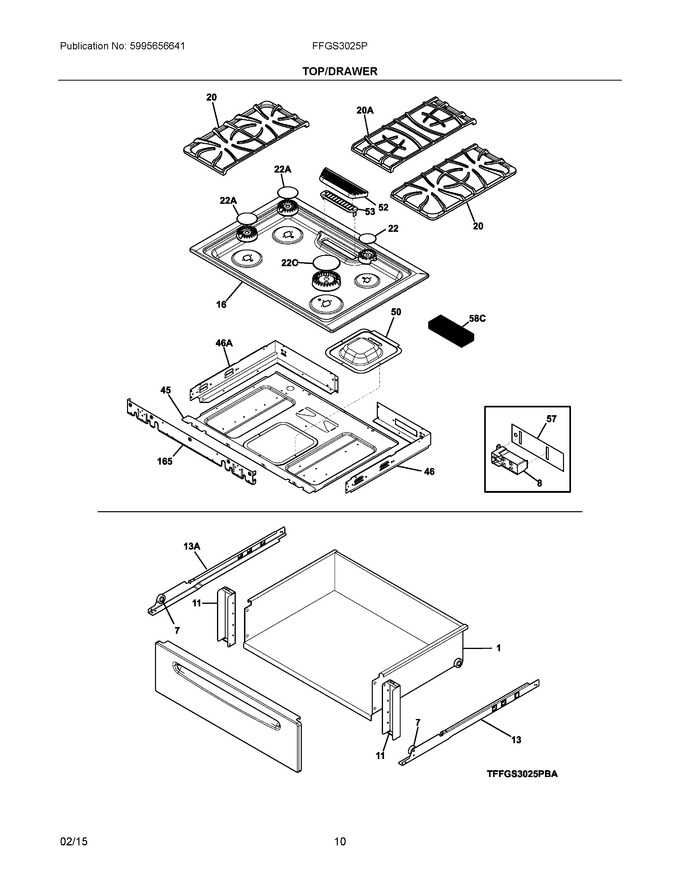

05 - Top/drawer


06 - Door


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298908		Panel, Drawer, Black, Front				$ 131.93
7	318332200		Roller, Nylon		Appelez-nous	-
8	808608802		Module, Spark   (Replaces: 316262405)			Immediately	$ 82.93
11	318298600		Bracket, Drawer Support, (2)				$ 62.69
13	318018100		Channel, Drawer, Rh			Immediately	$ 30.01
16	318569262		Maintop Assembly, Black				$ 263.66
20	318560260		Grate, Burner, Black, (2)		Appelez-nous	-
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
45	318578701		Panel, Burner Box, Bottom		Appelez-nous	-
46	318568200		Box, Burner, Rh				$ 23.99
50	318578803		Panel, Service, Fan				$ 43.73
52	318291126		Cover, Flue, Black, Outer   (Replaces: 318291102)				$ 87.55
53	318308303		Cover, Flue, Black				$ 112.19
57	318295611		Panel, Service				$ 15.12
165	318227521		Plate, Mounting		Appelez-nous	-
13A	318018101		Channel, Drawer, Lh				$ 63.11
20A	318560470		Grate, Black, Center				$ 290.46
22A	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22C	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
46A	318568201		Box, Burner, Lh				$ 28.93
58C	318594402		Insulation, Flue   (Replaces: 318594401)				$ 245.64
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	318291504		Plate, Cook Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
