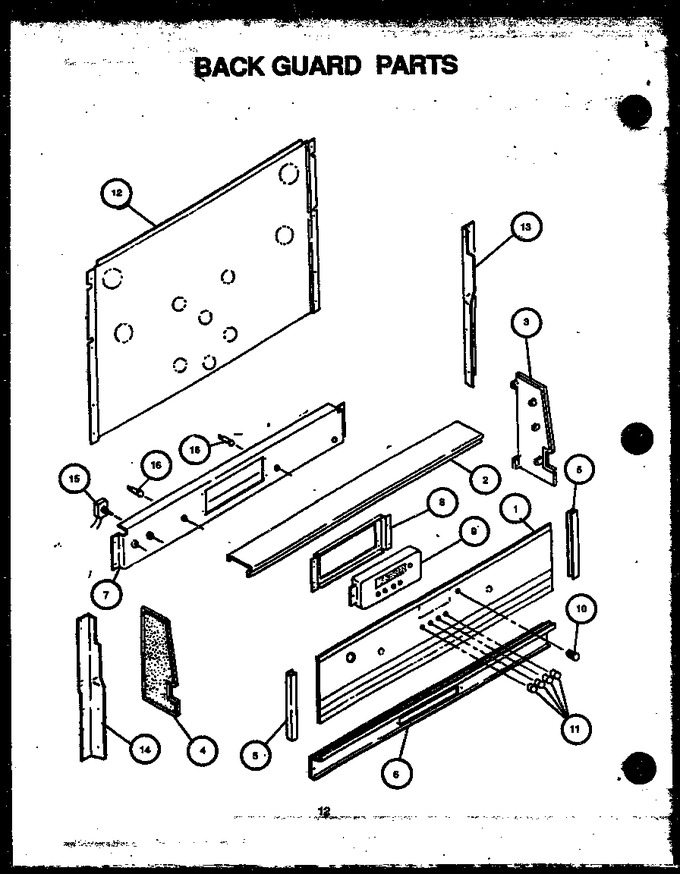

01 - Back Guard Parts


02 - Electrical Components


03 - Gas Components


04 - Main Top And Oven Assy


05 - Oven Cabinet Assy


06 - Oven Door Parts


07 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0710236		Glass Control Panel		Appelez-nous	-
2	R0710259		0300470		Appelez-nous	-
3	Y0302983		End Cap, Rh		Appelez-nous	-
4	Y0302982		End Cap, Lh		Appelez-nous	-
5	R0710260		Channel, Backguard		Appelez-nous	-
6	R0710237		Trim Lower, White		Appelez-nous	-
6	300771L		Trim, Lower Backguard		Appelez-nous	-
7	0301521		Panel, Bkgd Heat		Appelez-nous	-
8	R0710261		Bracket, Clock Mtg.		Appelez-nous	-
9	R0710262		Control, Erc		Appelez-nous	-
10	R0710238		Knob Clock		Appelez-nous	-
11	R0710239		Button, Erc Control		Appelez-nous	-
12	0058909		Rear Backguard & Cover Plate		Appelez-nous	-
13	Y0058920		Support, Backguard Rt		Appelez-nous	-
14	Y0058919		Support Backguard Lh		Appelez-nous	-
15	R0163017		Switch, Oven Light		Appelez-nous	-
16	Y0710257		Indicator Light		Appelez-nous	-
