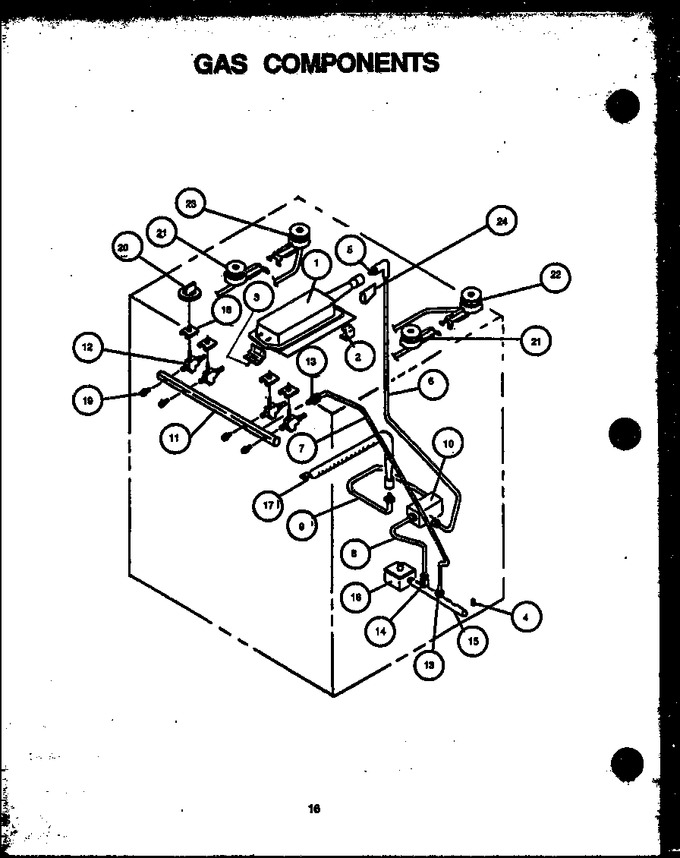

03 - Gas Components


04 - Main Top And Oven Assy


05 - Oven Cabinet Assy


06 - Oven Door Parts


07 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0710231		Burner, Ultra Ray Broiler		Appelez-nous	-
2	R0705759		Bracket, Ignitor		Appelez-nous	-
3	R0710229		Support, Broil Burner		Appelez-nous	-
4	40705761		Pipe Plug, 1/8`` - 27 Npt		Appelez-nous	-
5	R0710088		Orifice Spud, Nat. Gas No.50		Appelez-nous	-
6	R0710218		Kit, Orifice,tubing,brkt		Appelez-nous	-
6	R0710089		Orifice, No.58 Lp		Appelez-nous	-
7	R0710234		Tubing Inlet To Manifold		Appelez-nous	-
8	786324		Ignitor   (Replaces: R0710221)			Immediately	$ 60.68
9	R0710220		Tubing, Oven Burner		Appelez-nous	-
10	R0710219		Valve, Gas		Appelez-nous	-
11	Y0302540		Assy., Manifold Pipe Tapped W/		Appelez-nous	-
12	0300593		Valve, Top Burner		Appelez-nous	-
13	R0708220		Fitting, Straight		Appelez-nous	-
14	R0706008		Valve, Shut-off		Appelez-nous	-
15	0300479		Inlet Pipe		Appelez-nous	-
16	R0710099		Regulator		Appelez-nous	-
17	R0710090		Oven Burner		Appelez-nous	-
18	R0702536		Spark Switch		Appelez-nous	-
19	R0700049		Surface Valve Bolt& Gasket		Appelez-nous	-
20	R0703577		Knob Top Burner		Appelez-nous	-
21	R0710093		Top Burner Front		Appelez-nous	-
22	R0710094		Top Burner Rr		Appelez-nous	-
23	R0710095		Top Burner Lr		Appelez-nous	-
24	R0710230		Broil Reflector		Appelez-nous	-
NI	Y0062755		Grounding Bracket		Appelez-nous	-
NI	R0708223		Tubing, Inlet To Manifold		Appelez-nous	-
NI	YR0710226		Tubing, Broil Burner		Appelez-nous	-
NI	R0701024		Pac Nut Lock		Appelez-nous	-
NI	WPY0070927		Mounting Clip   (Replaces: R0701530)				$ 6.85
NI	R0705998		Mounting Bracket		Appelez-nous	-
NI	R0710133		Plug, Ignitor Wires		Appelez-nous	-
NI	R0710227		Orifice Broil Burner		Appelez-nous	-
