New Model Search:

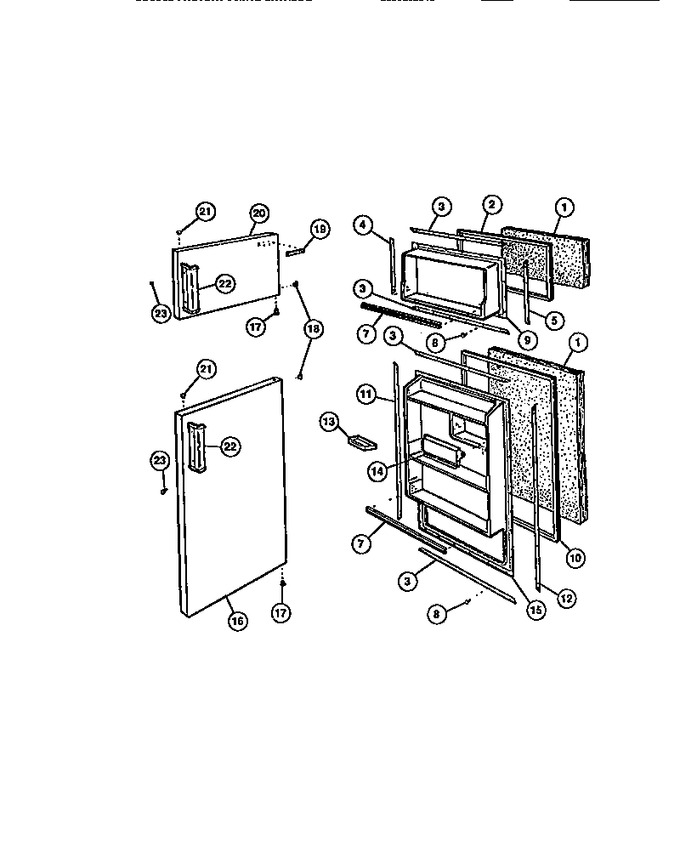

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303007739 | Insulation-door (bulk) |
|
- | |||||
| 2 | 5303276875 | Gasket-freezer Door-almond |
|
- | |||||
| 3 | 08011191 | Retainer-top/bottom (4) |
|
- | |||||
| 4 | 5303276876 | Retainer-left Side |
|
- | |||||
| 5 | 08011189 | Retainer-right Side |
|
- | |||||
| 7 | 5303276877 | Rack-door (4) |
|
- | |||||
| 8 | 134178901 | Screw-8a X 1/2 (54) (Replaces: 5303211311) |
|
$ 14.89 | |||||
| 9 | G185131 | Inner Panel-freezer |
|
- | |||||
| 10 | 5303276879 | Gasket-refrigerator Door-almond |
|
- | |||||
| 11 | 08011188 | Retainer-left Side |
|
- | |||||
| 12 | 08011187 | Retainer-right Side |
|
- | |||||
| 13 | 5303276880 | Butter Dish |
|
- | |||||
| 14 | 5303276881 | Dairy Door |
|
- | |||||
| 15 | 3205054 | Inner Panel-refrigerator |
|
- | |||||
| 16 | 5303276887 | Refrigerator Door-almond |
|
- | |||||
| 17 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 18 | 5308000181 | Plug-almond (8) |
|
- | |||||
| 19 | 5303276883 | Nameplate |
|
- | |||||
| 20 | 5303276885 | Freezer Door-almond |
|
- | |||||
| 21 | 5303001308 | Plug-almond (2) |
|
- | |||||
| 22 | 5308009875 | Handle Assembly (2) |
|
- | |||||
| 23 | 5308011745 | Screw |
|
$ 10.38 | |||||
| *49601 | 5303276882 | Egg Tray |
|
- |
