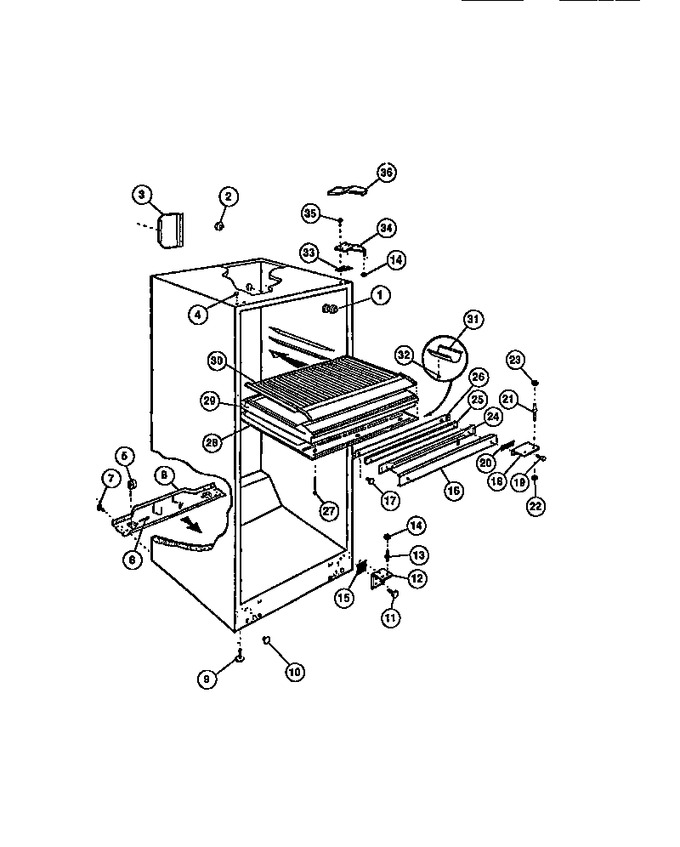

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R000900680 | Ferrule-inner |
|
- | |||||
| 2 | R000900676 | Ferrule-outer |
|
- | |||||
| 3 | 08011184 | Cover-wiring |
|
- | |||||
| 3 | G185075 | Screw-cover |
|
- | |||||
| 4 | 3001698 | Plug-almond (2) |
|
- | |||||
| 5 | 08011155 | Roller-rear (2) |
|
$ 6.88 | |||||
| 6 | 08011131 | Pin-roller (2) |
|
- | |||||
| 7 | G185075 | Screw (6) |
|
- | |||||
| 8 | 08012871 | Base-compressor |
|
- | |||||
| 9 | 08011117 | Leveling Screw (2) |
|
- | |||||
| 9 | 3001700 | Anchor Nut-screw (2) (not Illustrated) |
|
- | |||||
| 10 | 3204940 | Plug-almond |
|
- | |||||
| 11 | 08011142 | Screw-hinge Mounting (3) |
|
- | |||||
| 12 | 08011174 | Bracket-bottom Hinge |
|
- | |||||
| 13 | 5303001321 | Pin, Bottom Hinge |
|
$ 17.25 | |||||
| 14 | 08011152 | Washer-hinge Pin (2) |
|
- | |||||
| 15 | 08011167 | Shim-bottom Hinge |
|
- | |||||
| 16 | 08011213 | Mullion-almond |
|
- | |||||
| 17 | 3205085 | Screw-mullion (2) |
|
- | |||||
| 17 | 3001698 | Screw Cover-almond (not Illustrated) |
|
- | |||||
| 18 | 08011173 | Bracket-center Hinge |
|
- | |||||
| 19 | 3205083 | Screw-hinge Mounting (2) |
|
- | |||||
| 20 | G185091 | Shim-center Hinge |
|
- | |||||
| 21 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 22 | 08011151 | Washer-hinge Pin |
|
- | |||||
| 23 | 08011152 | Washer-hinge Pin |
|
- | |||||
| 24 | 3204929 | Heater-mullion |
|
- | |||||
| 25 | 08011192 | Insulation-heater |
|
- | |||||
| 26 | 08011211 | Stop-mullion Mounting |
|
- | |||||
| 27 | 08011124 | Screw-panel Assembly (3) |
|
- | |||||
| 28 | 08011195 | Top Panel-refrigerator |
|
- | |||||
| 29 | 08011194 | Divider-styrofoam |
|
- | |||||
| 30 | 08011193 | Bottom Panel-freezer |
|
- | |||||
| 31 | 08011200 | Cover-light |
|
- | |||||
| 32 | G185085 | Screw-cover Mounting (2) |
|
- | |||||
| 33 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 34 | 08011172 | Hinge-top |
|
- | |||||
| 35 | 5303211326 | Screw-hinge Mounting (2) |
|
- | |||||
| 36 | 3001695 | Hinge Cover-almond |
|
- |
