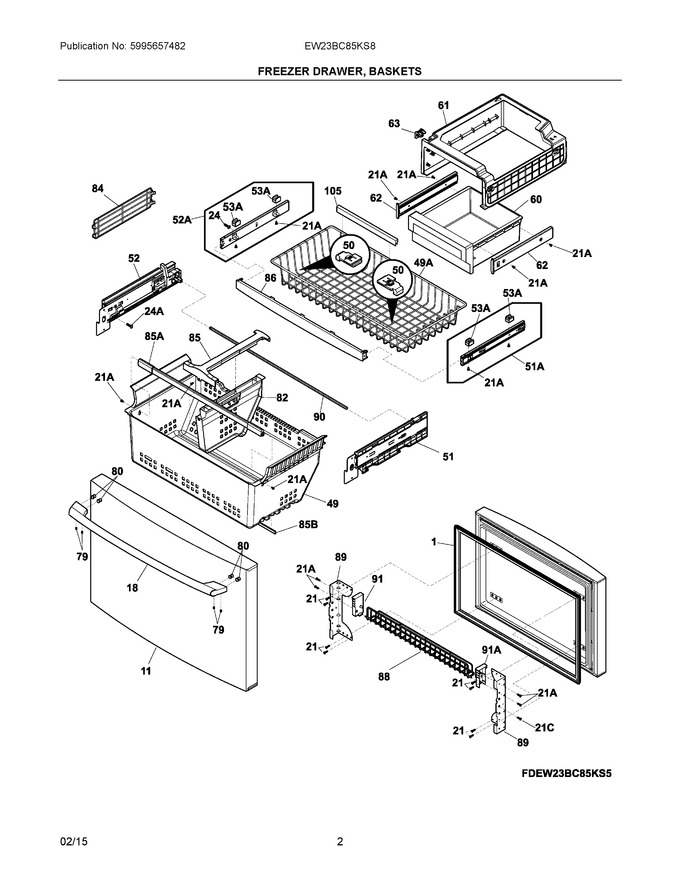

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket-frzr Drawer, Gray, Magnetic (Replaces: 241778308) |
|
Immediately | $ 86.28 | ||||
| 11 | 241987922 | Drawer, Stainless, Freezer |
|
$ 713.58 | |||||
| 18 | 241881310 | Handle-frzr Drawer, Stainless |
|
$ 271.45 | |||||
| 21 | 241690602 | Screw, Quadrex, #10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 24 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 49 | 5304526200 | Basket-frzr, Plastic, Lower (Replaces: 242130801) |
|
Immediately | $ 147.57 | ||||
| 50 | 242219502 | Clip-basket, Pull Side |
|
$ 18.95 | |||||
| 51 | 5303918694 | Slide Assembly, Basket Lower, Rh, Freezer Drawer (Replaces: 242147114) |
|
$ 216.17 | |||||
| 52 | 5303918693 | Slide Assembly, Basket Lower, Rh (Replaces: 242147113) |
|
Immediately | $ 256.33 | ||||
| 60 | 242131602 | Bin-soft Freeze |
|
$ 929.93 | |||||
| 61 | 242177602 | Housing W/gasket, Soft Freeze Bin, Freezer Drawer |
|
$ 107.10 | |||||
| 62 | 242154101 | Slide Assembly, Soft Freeze Bin, Freezer Drawer |
|
$ 104.81 | |||||
| 63 | 242159501 | Clip-soft Freeze Bin, Freezer Drawer |
|
$ 17.73 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 242131401 | Divider, Basket |
|
$ 65.88 | |||||
| 84 | 241780905 | Divider, Basket |
|
$ 91.43 | |||||
| 85 | 242139401 | Divider, Basket, Lower |
|
$ 87.21 | |||||
| 86 | 5304507340 | Trim, Drawer, Stabilizer (Replaces: 241807605) |
|
Immediately | $ 45.55 | ||||
| 88 | 241824008 | Rack-non-tilt Out, Door |
|
$ 123.62 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 109.21 | |||||
| 90 | 242136901 | Bar-timing |
|
$ 35.45 | |||||
| 91 | 241824102 | Cap-door Rack |
|
$ 17.44 | |||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 17.11 | ||||
| 21C | 241899703 | Screw, Truss Head, #10-32 X 1/4, Zinc |
|
$ 15.92 | |||||
| 24A | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 11.44 | |||||
| 49A | 241780811 | Basket-frzr, Upper |
|
$ 212.93 | |||||
| 51A | 241894221 | Slide Assembly, Basket, Rh, Freezer Drawer |
|
$ 133.25 | |||||
| 52A | 241894222 | Slide Assembly, Basket, Lh, Freezer Drawer |
|
$ 133.96 | |||||
| 53A | 5303918801 | Retainer-basket (Replaces: 242216301) |
|
$ 12.89 | |||||
| 85A | 242139301 | Support-beam, Divider, Lower Basket |
|
$ 73.71 | |||||
| 85B | 241872203 | Support-beam |
|
$ 53.85 | |||||
| 91A | 241824101 | Cap, Door Rack, White |
|
$ 17.44 | |||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 14.27 | ||||
| NI | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NIA | 241601002 | Wrench, Allen |
|
- | |||||
| NIA | 5304497384 | Plate, Tapping (Replaces: 242147601) |
|
$ 15.60 | |||||
| NIA | 242163601 | Floor, Ribbed, Soft Freeze Bin |
|
$ 53.13 | |||||
| NIA | 242139201 | Spring-compression, Divider, Lower Basket |
|
$ 19.72 | |||||
| NIA | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NIAA | 242039701 | Screw, Basket Slides |
|
$ 13.46 | |||||
| NIB | 241701902 | Screwdriver, Hex, 3/32", Ball Driver |
|
$ 19.85 |
