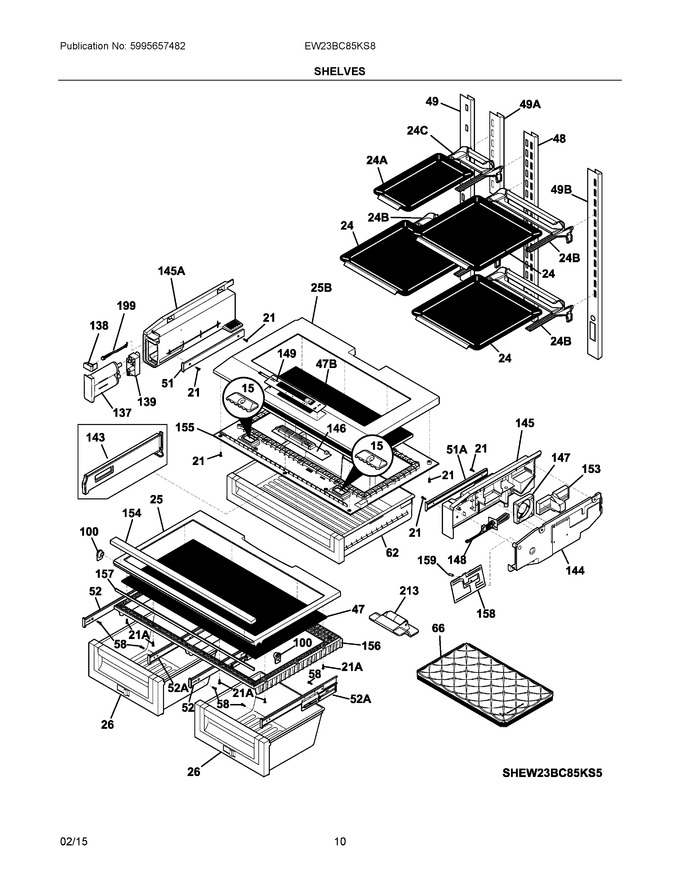

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	241891104		Light-led		Appelez-nous	-
21	241953902		Screw, #8 - 18 X .380			Immediately	$ 17.11
24	242128403		Shelf-glass, Formed				$ 217.08
25	241802205		Frame-crisper Cover, Upper				$ 119.07
26	241772808		Pan-crisper				$ 269.22
47	241768802		Glass-crisper Frame				$ 77.36
48	242122101		Channel-shelf Mtg, Center				$ 80.09
49	242122204		Channel-shelf Mtg, Side, Lh		Appelez-nous	-
51	242156403		Slide-deli Soft Close, Bm, Lh				$ 146.90
52	242156505		Slide-crisper Cover, Soft Close, Lh, Bm				$ 137.51
58	241941202		Screw, 8-18 X 3/8				$ 15.17
62	241827206		Pan-deli				$ 248.49
66	242131002		Mat-wine				$ 71.98
100	241768601		Support-crspr Cover				$ 19.13
137	242175101		Filter-water, Water, Carbon Cassette, Front, With O'rings		Appelez-nous	-
138	241885901		Button-filter Release				$ 28.35
139	240396002		Base-water Filter			Immediately	$ 119.66
143	242151004		Divider-deli Pan		Appelez-nous	-
144	241803901		Cover-deli Air Control		Appelez-nous	-
145	241803803		Housing-deli Air Control				$ 126.21
147	241825704		Fan Assembly, Motor, With Blade				$ 289.58
149	242025901		Overlay, Electronic, Membrane Switch				$ 159.47
154	241879902		Trim-crisper Cover				$ 39.44
155	241803403		Frame-deli Cover, Lower				$ 148.13
156	241872006		Frame-crisper Cover, Lower				$ 119.78
157	241872201		Beam-crisper Cover				$ 53.85
158	241955004		Board-main Power, Ptd				$ 245.23
159	241815401		Cap, Pcba Hold Down		Appelez-nous	-
199	240397501		Rod				$ 55.57
213	242010901		Roller Assy, Deli Pan				$ 49.62
145A	242058709		Support, Rail				$ 90.01
146B	241958401		Control-electronic, Ptd				$ 272.87
148A	241782001		Heater-ptd, 115 V				$ 194.90
153A	241775301		Motor-damper				$ 227.24
21A	5304453707		Screw, Quad Hilo, #8-18, (2)   (Replaces: 241953901)			Immediately	$ 15.92
24A	242128404		Shelf-glass, Formed		Appelez-nous	-
24B	242216402		Bracket-shelf, W/gasket				$ 273.05
24C	242216401		Bracket-shelf, W/gasket				$ 240.61
25B	5303918487		Cover-pan, Ptd, Cover Kit				$ 185.18
47B	241967401		Glass, 2 Pane Insulatd				$ 225.39
49A	5304531311		Channel-shelf Mtg, Center, Icemaker Shelf   (Replaces: 242122001)		Appelez-nous	-
49B	242122302		Channel-shelf Mtg, Side, Rh				$ 73.00
51A	242156401		Slide-deli Soft Close, Bm, Rh				$ 154.30
52A	242156506		Slide-crisper Cover, Soft Close, Rh, Bm				$ 171.47
NI	242110284		Energy Guide		Appelez-nous	-
NI	5304521780		Harness-power Ptd   (Replaces: 241822602)				$ 23.51
NI	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 3.79
NI	241835402		Harness-wiring, Mixing Valve				$ 23.39
NI	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
NIA	240398401		Spring-filter Release Rod				$ 59.16
NIA	240527001		O-ring, Wtr Filter Base   (Replaces: 240526901)				$ 10.62
NIA	241936201		Damper-rubber, Ptd Fan		Appelez-nous	-
NIA	242130101		Clip, Retainer, Ptd Board		Appelez-nous	-
NIA	241858401		Screw, #6 X 1/2 Hilo				$ 13.05
NIBA	241862501		Harness-wiring, Ptd Main W/led				$ 47.48
NIBB	241862601		Harness-wiring, Ptd W/led				$ 122.09
