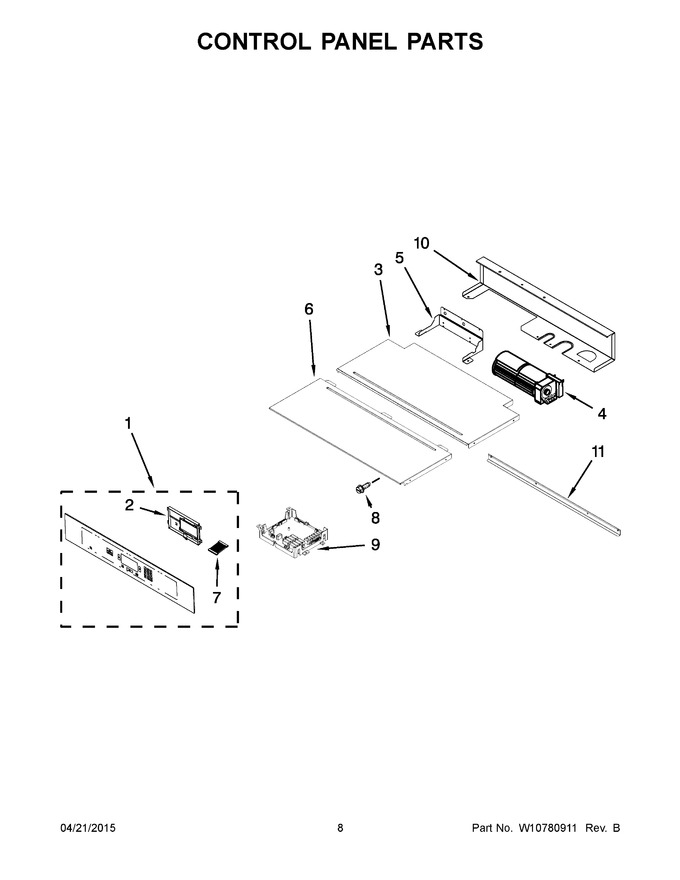

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10401259		Assembly, Control Panel (stainless)   (Replaces: W10344116)			Immediately	$ 1,986.86
2	W10811884		Assembly, User Interface   (Replaces: W10344083)				$ 518.44
3	W10176094		Panel, Rear		Appelez-nous	-
4	WPW10273667		Blower   (Replaces: W10273667)			Immediately	$ 269.68
5	W10186997		Bracket, Cooling Fan				$ 73.49
6	W10311703		Panel, Front		Appelez-nous	-
7	W10175829		Cable, User Interface		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	W10292566		Manager, Appliance				$ 376.13
10	W10186983		Bracket, 2nd Blower		Appelez-nous	-
11	W10291274		Bracket, Wires Support		Appelez-nous	-
