Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11756840 Cap, Screw   (Replaces: 8304588BL) Special Order $ 10.58

2 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

3 W10737655 Door, Microwave Special Order $ 309.83

4 W10267047 Screw Special Order $ 11.55

5 W10176199 Stainless Special Order $ 36.15

6 W10314607 Spacer, Handle Appelez-nous -
7 W10269421 Glass, Assembly (stainless) Appelez-nous -
8 W10186756 Handle, Door (stainless) Special Order $ 139.42

9 WPW10214168 Badge (stainless)   (Replaces: W10214168) Special Order $ 73.67


    View Diagram in Separate Window     Print Icon   Print Part List

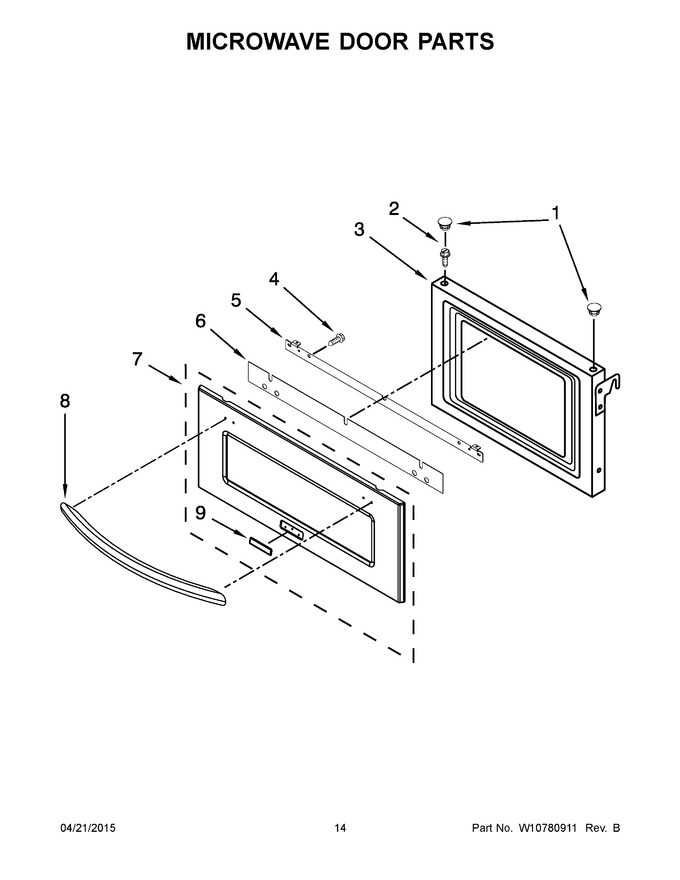

Diagram for JMW2330WS02
