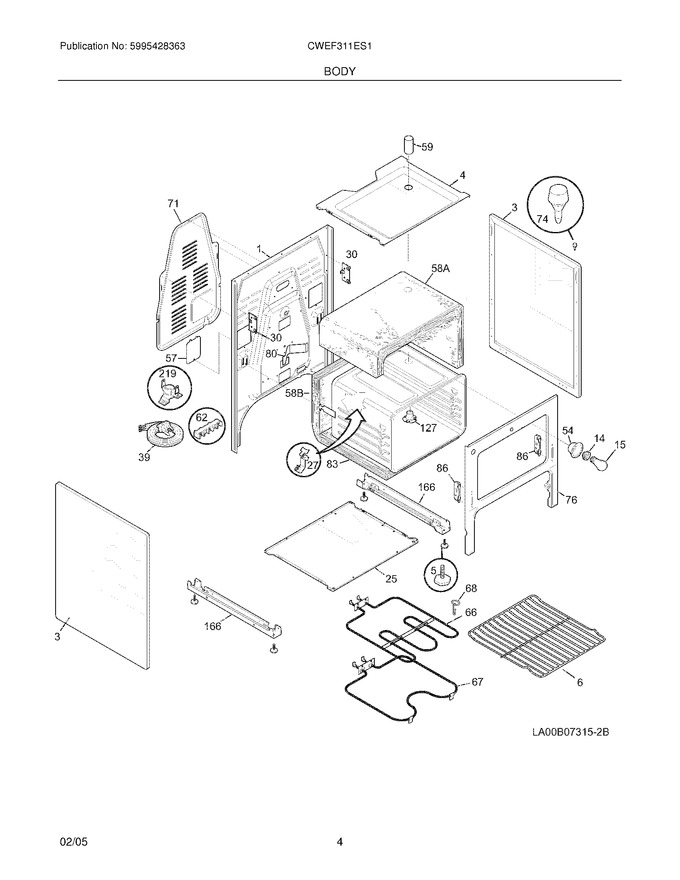

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318108102		Panel,main Back		Appelez-nous	-
3	318025611		Panel,bodyside ,white ,(2)		Appelez-nous	-
4	318073805		Burner Box,insul Cover		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318025314		Rack,oven   (Replaces: 318025308)			Immediately	$ 148.70
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Lamp-oven Light   (Replaces: 5303299720)			Immediately	$ 1.98
25	318108702		Shield,heat,lower		Appelez-nous	-
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
30	318110800		Bracket-hinge,main Top ,(2)		Appelez-nous	-
39	318113107		Cord,electric		Appelez-nous	-
54	318222400		Housing,oven Light				$ 58.22
57	318036501		Cover,access		Appelez-nous	-
59	318072547		Tube,vent ,oven		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
68	5304403015		Support,element Hanger				$ 35.04
71	318086601		Cover,wire		Appelez-nous	-
74	318141910		Bumper,bodyside				$ 3.68
76	318108501		Frame-front,wheels Incl		Appelez-nous	-
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
83	318109413		Liner,oven				$ 135.14
86	5303310524		Receptacle,hinge		Appelez-nous	-
127	318230000		Adapter,vent Tube		Appelez-nous	-
166	318111000		Bracket,base Support		Appelez-nous	-
58A	318285000		Insulation,oven Wrapper		Appelez-nous	-
58B	318285013		Insulation,oven Back				$ 50.24
F219	318003602		Thermostat,safety				$ 110.09
F67	318255006		Element,bake ,3000w   (Replaces: 318255000)			Immediately	$ 185.14
NI	5303325980		Screw,10-32 X 0.437				$ 12.76
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	5303325978		Screw,shoulder Head ,8-18 X 1/2		Appelez-nous	-
